Headers, Receptacles, Female Sockets Overview

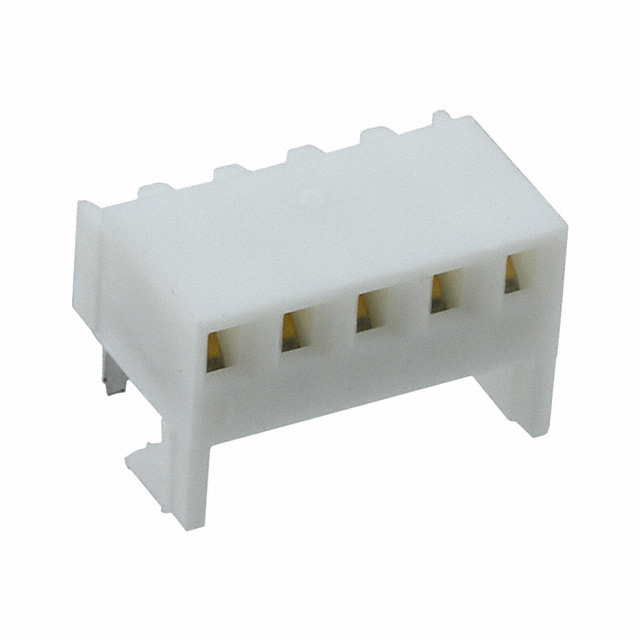

Molex part number 22-16-2050 is a KK® Interconnect System header, specifically a right-angle PCB header with an integrated wire housing. The component features a 5-position configuration with a 2.54 mm (0.100 inch) pitch. It utilizes a through-hole mounting style for secure attachment to printed circuit boards. The connector system is designed to provide multiple polarity options to ensure correct mating and prevent misalignment during assembly.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle PCB header design for space-efficient board layouts
• Integrated wire housing for direct cable connection
• Polarity features ensure correct mating alignment
• Through-hole mounting for robust PCB attachment

Headers, Receptacles, Female Sockets Applications

• Consumer electronics internal interconnections
• Industrial control panel wiring
• General-purpose PCB-to-wire signal transmission

Headers, Receptacles, Female Sockets Procurement Notes

Verify the exact suffix code against the manufacturer's official datasheet to confirm pin count, housing color, and terminal plating specifications. Ensure the selected variant matches the required current rating and voltage classification for the specific application environment. Cross-reference the part number with authorized distributors to confirm availability and authenticity.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a right-angle connection is required to save vertical space on the PCB. The 2.54 mm pitch is standard for general-purpose applications. Consider the integrated housing feature if direct wire termination is preferred over separate crimped terminals. Verify that the through-hole footprint aligns with the PCB design rules and manufacturing capabilities.

Headers, Receptacles, Female Sockets Part Context

The 22-16-2050 belongs to the Molex KK® Interconnect System, a widely used family of connectors known for their versatility and reliability. This system supports various configurations including headers, receptacles, and housings, making it suitable for a broad range of electronic applications from commercial to industrial sectors.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct replacements must match the 2.54 mm pitch, 5-position count, right-angle orientation, and through-hole mounting style. Verify compatibility with existing wire gauges and housing locking mechanisms. Consult Molex documentation for any updated series equivalents or cross-reference guides.
