22162070

Headers, Receptacles, Female Sockets Overview

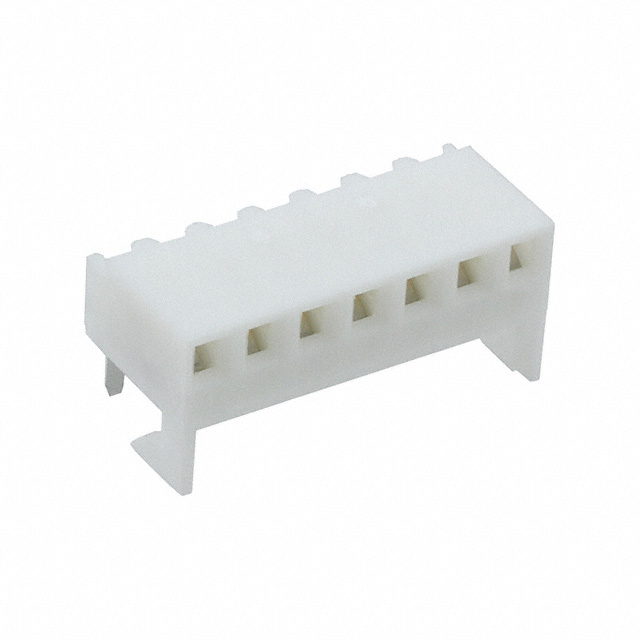

The Molex 22162070 is a KK 254 PC Board Connector receptacle designed for right-angle board edge and through-hole mounting. It features 7 positions with a 0.100 inch (2.54mm) pitch. The connector utilizes offset header entry holes to provide polarization and supports both power and signal transmission within the same housing. Contact plating is gold at 0.38µm thickness, ensuring reliable electrical performance across its 7 circuits.

Headers, Receptacles, Female Sockets Feature Summary

• Incorporates offset header entry holes for polarization and mixed signal/power capability
• Features end-to-end stackable design for compact vertical integration
• Utilizes gold contact plating for enhanced conductivity and corrosion resistance

Headers, Receptacles, Female Sockets Applications

• Board edge interconnects requiring right-angle orientation
• Through-hole mounting applications in electronic assemblies
• Mixed signal and power distribution systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific order matches the 7-position configuration and right-angle orientation. Confirm the required contact plating thickness of 0.38µm gold. Ensure compatibility with the KK 254 series housing and mating headers. Check for any specific RoHS compliance documentation requirements relevant to your manufacturing standards before finalizing procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a right-angle connection is necessary for board edge or through-hole implementations. The 0.100 inch pitch allows for standard spacing layouts. Consider the stackable feature if vertical space efficiency is critical. Verify that the 7-circuit count meets the system's pinout requirements without needing additional connectors.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the KK 254 series, a widely used line of PCB connectors known for their reliability and versatility. The series offers various configurations including straight and right-angle options. The 22162070 specifically addresses needs for mixed-signal applications where polarization prevents incorrect mating.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other Molex KK 254 series receptacles with matching 7-position counts and right-angle orientations. Ensure any replacement maintains the 0.100 inch pitch and compatible gold plating specifications. Verify mechanical dimensions against existing board layouts.
