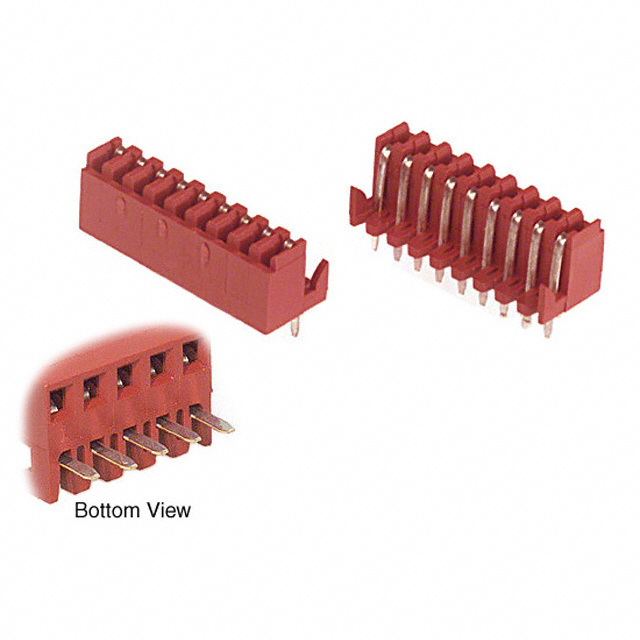

22173092

22173092 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CONN RCPT 9POS 0.1 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 22173092

• Description：CONN RCPT 9POS 0.1 GOLD PCB
• Series：KK254, 4455
• Mfr：Molex
• Package：Tray
• Connector Type：Receptacle, Bottom Entry
• Contact Type：Female, Cat Ear
• Style：Board to Board or Cable
• Number of Positions：9
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：15.0µin (0.38µm)
• Insulation Color：White
• Insulation Height：0.311" (7.90mm)
• Contact Length - Post：0.132" (3.35mm)
• Operating Temperature：-40°C ~ 80°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Hooks
• Current Rating (Amps)：2.5A
• Voltage Rating：250VAC

Headers, Receptacles, Female Sockets datasheet and documents for 22173092
