22284310

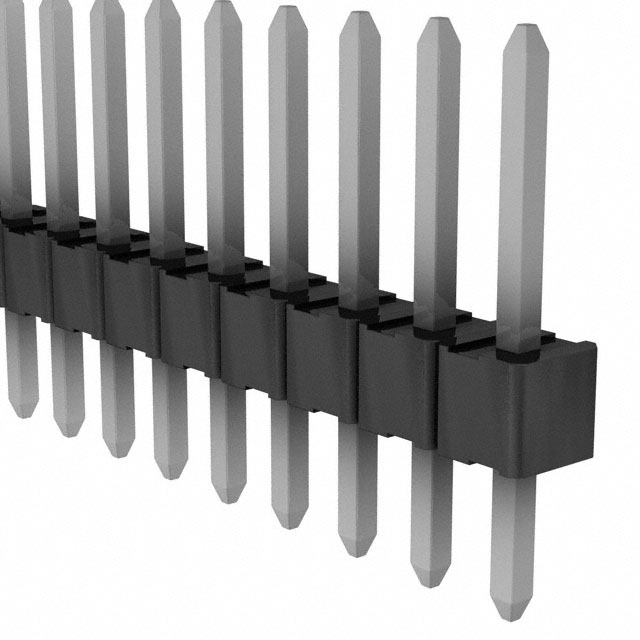

22284310 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HEADER VERT 31POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 22284310

• Description：CONN HEADER VERT 31POS 2.54MM
• Series：KK254, 42375
• Mfr：Molex
• Package：Bulk
• Connector Type：Header, Breakaway
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：31
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Unshrouded
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.240" (6.10mm)
• Contact Length - Post：0.125" (3.18mm)
• Overall Contact Length：0.455" (11.56mm)
• Insulation Height：0.090" (2.29mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：100.0µin (2.54µm)
• Contact Finish - Post：Tin
• Contact Material：-
• Insulation Material：Polyamide (PA), Nylon, Glass Filled
• Features：-
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 22284310
