Edgeboard Connectors Overview

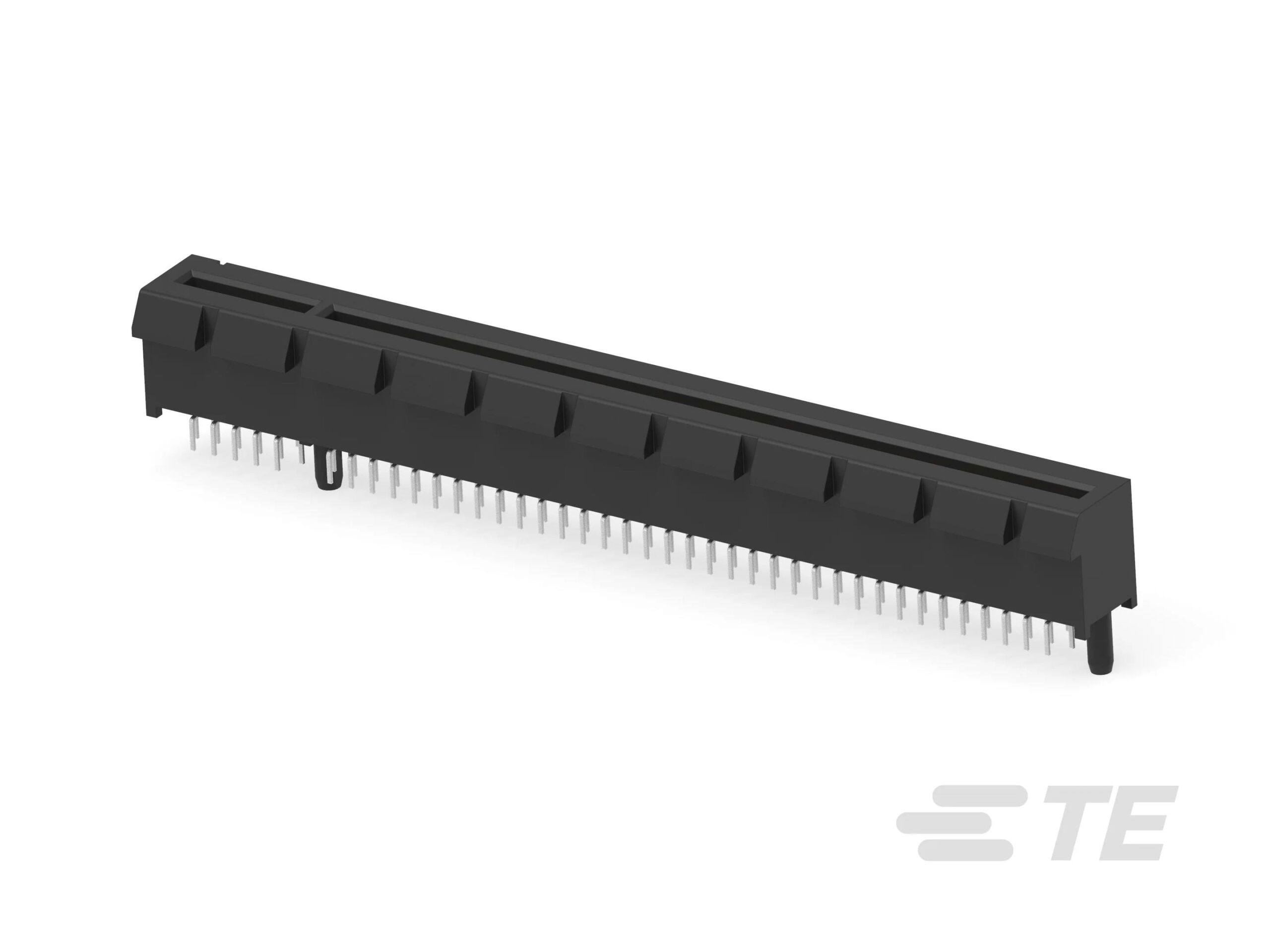

The TE Connectivity AMP Connectors part number 2362375-4 is a board-to-board connector system designed for PCI Express Gen 4 applications. It features 164 positions with a centerline pitch of 1.00 mm (0.039 inches). The connector utilizes a female contact configuration and includes termination posts and tails with a length of 2.3 mm. This component is specifically engineered to support high-speed data transmission standards required by modern computing architectures.

Edgeboard Connectors Feature Summary

• Supports PCI Express Generation 4 interface specifications
• Features a 164-position female contact array
• Utilizes a 1.00 mm centerline pitch design

Edgeboard Connectors Applications

• High-speed data transmission in computing systems
• PCI Express Gen 4 compliant hardware integration
• Board-to-board interconnection in server infrastructure

Edgeboard Connectors Procurement Notes

Verify the specific termination post and tail length requirement, as variants within this series may differ. Confirm that the 164-position count aligns with the target PCB footprint. Ensure compatibility with PCI Express Gen 4 signaling requirements before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a 1.00 mm pitch board-to-board connection is required for PCI Express Gen 4. The 164-position capacity suits specific signal routing needs. Consider the 2.3 mm termination height for mechanical clearance constraints within the assembly environment.

Edgeboard Connectors Part Context

This connector belongs to the TE Connectivity AMP series, which provides reliable interconnect solutions for demanding environments. The product line emphasizes robust performance for data and signal transmission across various industrial and commercial electronic applications.

Edgeboard Connectors Replacement Considerations

Part numbers 2-2362375-4 and 5-2362375-4 share the same 164-position count and 1.00 mm pitch but feature different termination post and tail lengths of 3.1 mm and 2.3 mm respectively. Verify mechanical fit before substitution.
