2842162-7

Headers, Male Pins Overview

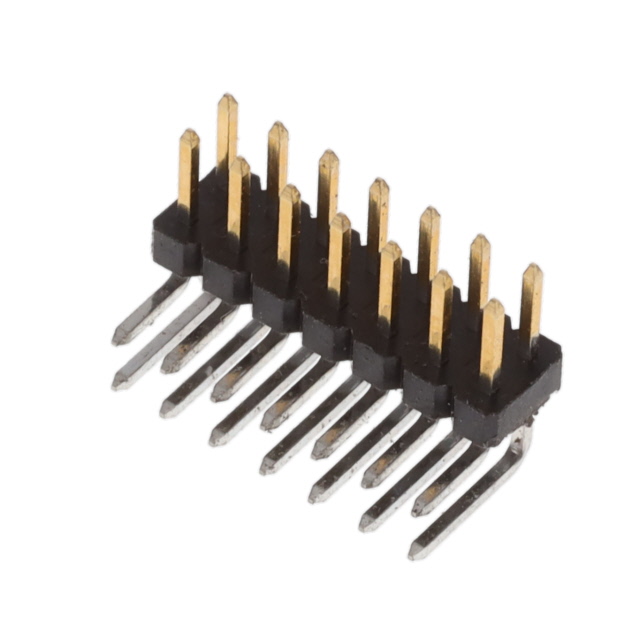

The TE Connectivity AMP Connectors part number 2842162-7 is a connector header assembly designed for through-hole mounting. It features a right-angle configuration with 14 positions arranged in a dual-row layout. The connector utilizes a 0.079-inch (2.00mm) pitch spacing between contacts. This component is engineered to provide reliable electrical interconnection within printed circuit board assemblies, specifically suited for applications requiring angled termination of signal or power lines.

Headers, Male Pins Feature Summary

• Right-angle header design facilitates compact board stacking and space-constrained layouts
• Through-hole termination ensures secure mechanical attachment to the substrate
• Dual-row configuration supports high-density pin counts within a minimal footprint

Headers, Male Pins Applications

• Industrial control system interface boards
• Consumer electronics internal wiring harnesses
• Telecommunications equipment backplanes

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to confirm exact contact plating specifications and material composition. Ensure that the ordering information matches the required right-angle orientation and dual-row structure. Cross-reference the package type to confirm bulk or tube availability requirements for your manufacturing process.

Headers, Male Pins Selection Notes

Select this component when a right-angle termination is necessary to optimize vertical clearance on the PCB. Confirm that the 2.00mm pitch aligns with the mating connector specifications. Evaluate the current carrying capacity requirements against the standard ratings for this series to ensure operational reliability under expected load conditions.

Headers, Male Pins Part Context

This component belongs to the AMPMODU 2mm Interconnection System, a widely utilized series known for robust performance in general-purpose electronic applications. The AMPMODU line provides versatile solutions for board-to-board and wire-to-board connections, emphasizing durability and consistent electrical performance across various industrial environments.

Headers, Male Pins Replacement Considerations

Consult the official TE Connectivity cross-reference documentation for direct substitute part numbers. Verify compatibility regarding pin count, pitch, and mounting style before implementing any alternative components to maintain system integrity.
