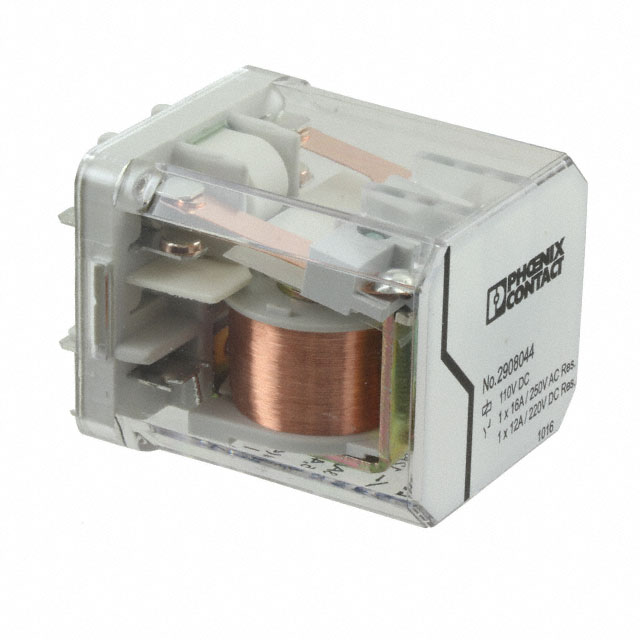

2908044

2908044 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Phoenix Contact. Its product description is RELAY GEN PURPOSE SPST 16A 110V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 2908044

• Description：RELAY GEN PURPOSE SPST 16A 110V
• Series：REL-PR1
• Mfr：Phoenix Contact
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：110VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：16 A
• Switching Voltage：440VAC, 350VDC - Max
• Load - Max Switching：7040VA, 5600W
• Coil Current：15 mA
• Coil Type：Non Latching
• Features：Magnetic Blowout
• Termination Style：Plug In
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：-
• Must Release Voltage：-
• Operating Temperature：-40°C ~ 70°C
• Contact Material：Silver Nickel (AgNi)
• Approval Agency：EAC, EX
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：20 ms
• Release Time：15 ms

Power Relays, Over 2 Amps datasheet and documents for 2908044
