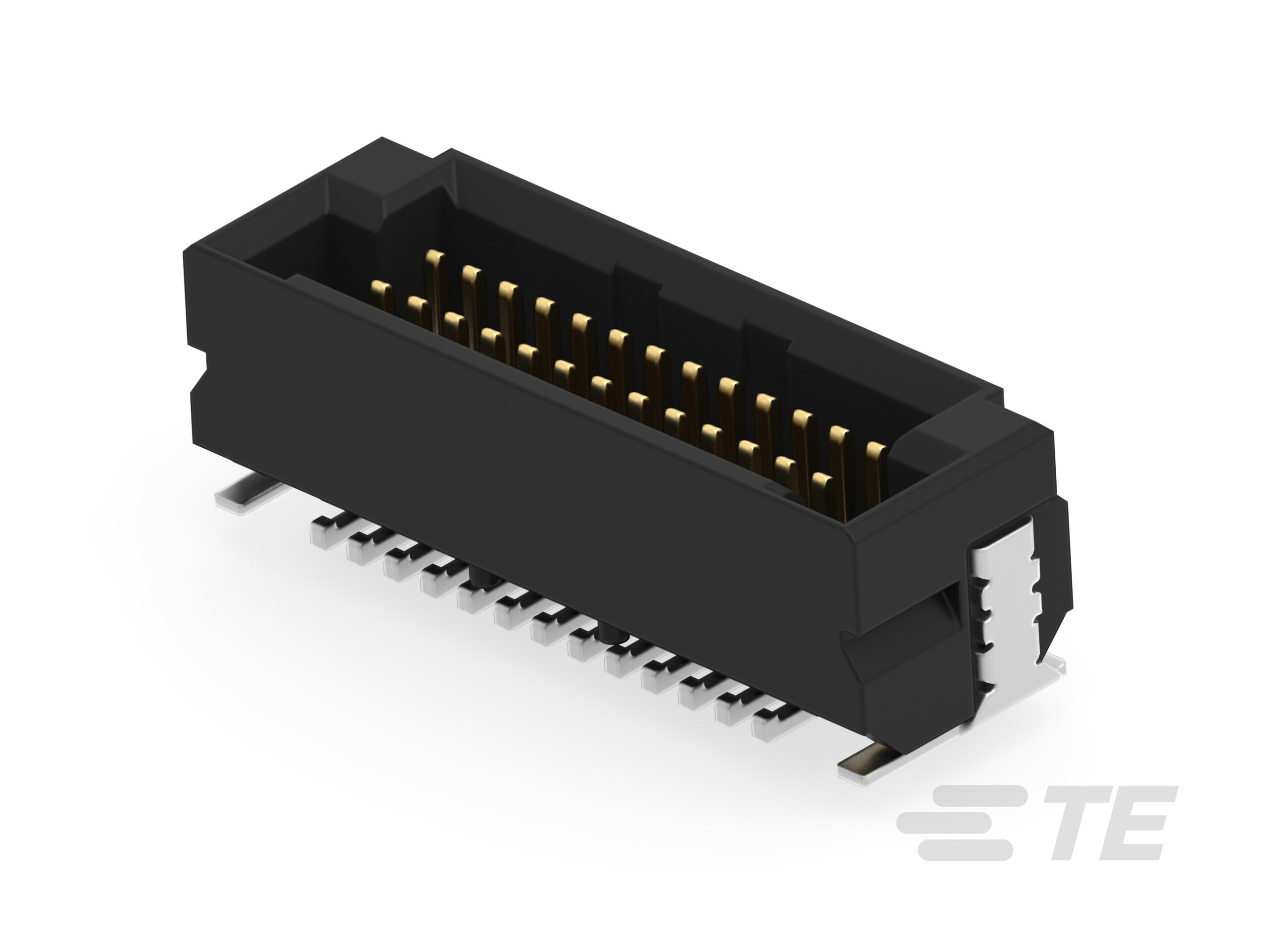

Arrays, Edge Type, Mezzanine (Board To Board) 294136-E product image

294136-E

$5.12

Description：26-PIN, VERTICAL, SMT
Series：MICROCON
Mfr：TE Connectivity Erni
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8c15a4792579 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: TE Connectivity Erni

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

294136-E is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists TE Connectivity Erni. Its product description is 26-PIN, VERTICAL, SMT. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 294136-E

Description：26-PIN, VERTICAL, SMT
Series：MICROCON
Mfr：TE Connectivity Erni
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Array, Male Pins
Number of Positions：26
Pitch：0.031" (0.80mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide, Pick and Place, Solder Retention
Contact Finish：Gold
Contact Finish Thickness：-
Mated Stacking Heights：-
Height Above Board：0.189" (4.80mm)
