3-1612163-4

Edgeboard Connectors Overview

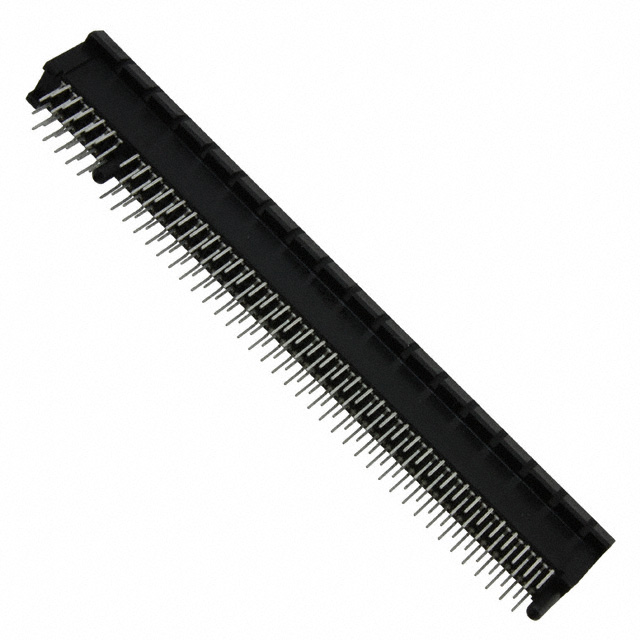

The 3-1612163-4 is a PCI Express female connector manufactured by TE Connectivity AMP Connectors. It features 164 positions with a 0.039-inch (1.0mm) pitch. The component is designed for vertical board-to-board mounting and utilizes solder termination. This connector supports high-speed data transmission standards required for PCI Express applications.

Edgeboard Connectors Feature Summary

• High-density 164-position configuration for compact system integration
• Vertical orientation facilitates efficient PCB layout
• Solder termination ensures secure mechanical and electrical attachment

Edgeboard Connectors Applications

• PCI Express expansion slots
• High-performance computing motherboards
• Server backplanes

Edgeboard Connectors Procurement Notes

Verify the specific datasheet revision and compliance documentation, such as RoHS status, prior to procurement. Confirm that the vertical form factor and pin count align precisely with the target PCB footprint requirements. Ensure compatibility with mating PCIe devices regarding mechanical retention and signal integrity specifications.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, vertical interface is required for PCI Express architectures. Evaluate the 0.039-inch pitch against available board space constraints. Consider the solder termination method in relation to the assembly process capabilities and thermal profile limitations of the manufacturing environment.

Edgeboard Connectors Part Context

This part belongs to the TE Connectivity AMP Connectors portfolio, specializing in reliable interconnect solutions. The product line includes various connector types for diverse electronic applications. The 3-1612163-4 specifically addresses the need for robust, high-speed data connectivity within modern computer systems and industrial equipment.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 164-position PCIe connectors from TE Connectivity or alternative manufacturers. Verify identical pinout, pitch, and mounting style before substitution. Ensure any replacement meets the same electrical and mechanical performance standards.
