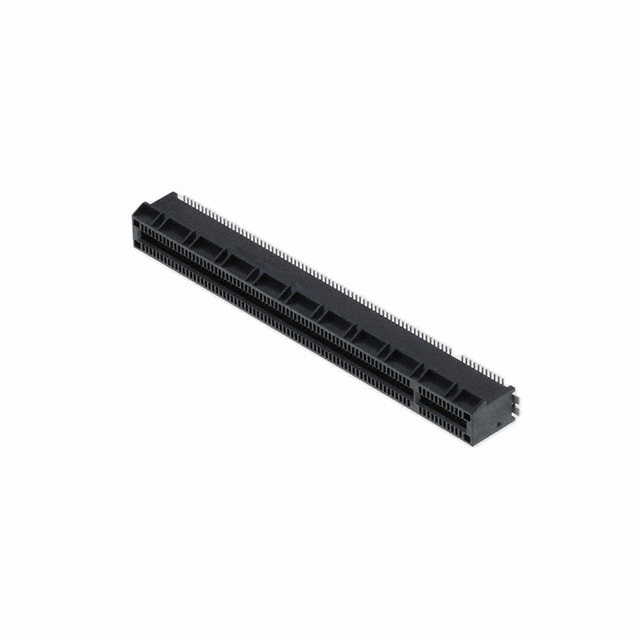

3-2337939-8

$8.13

Description：CONN PCI EXP FMALE 164POS 0.039
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tray,Tray

SKU:c74c24a73de4 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

3-2337939-8 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PCI EXP FMALE 164POS 0.039. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 3-2337939-8

Description：CONN PCI EXP FMALE 164POS 0.039
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tray,Tray
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：11; 71
Number of Positions：164
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.039" (1.00mm)
Read Out：Dual
Features：Board Guide, Locking Ramp, Pick and Place, Solder Retention
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：Flash
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 85°C

Edgeboard Connectors datasheet and documents for 3-2337939-8

3-2337939-8

Edgeboard Connectors Overview

The 3-2337939-8 is a 164-position female card edge connector from the TE Connectivity AMP Connectors series. It features a 0.039 inch (1.00mm) pitch and is designed for PCI Express applications. The connector utilizes gold-plated copper alloy contacts to ensure superior conductivity and reliable signal transmission. It supports dual read-out capability and includes board guide features for precise alignment during assembly.

Edgeboard Connectors Feature Summary

Gold-plated copper alloy contacts provide superior conductivity
Dual read-out capability for enhanced signal integrity
Board guide features ensure precise alignment
Locking ramp mechanism secures connection

Edgeboard Connectors Applications

PCI Express expansion cards
High-speed data transfer modules
Industrial computing systems

Edgeboard Connectors Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm pin count, contact plating thickness, and mounting style. Ensure compatibility with PCB stack-up requirements and mating connector specifications before procurement.

Edgeboard Connectors Selection Notes

Select this component for high-density PCI Express interfaces requiring robust signal integrity. Consider the 1.00mm pitch and 164-pin configuration for space-constrained designs needing reliable high-speed data connections.

Edgeboard Connectors Part Context

This part belongs to the standard card edge connector family, specifically optimized for PCIe Gen4 applications. It represents a high-reliability interconnect solution within the TE Connectivity portfolio for demanding electronic environments.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference options through official TE Connectivity channels if direct replacement is required.
