302-006-321-201

Edgeboard Connectors Overview

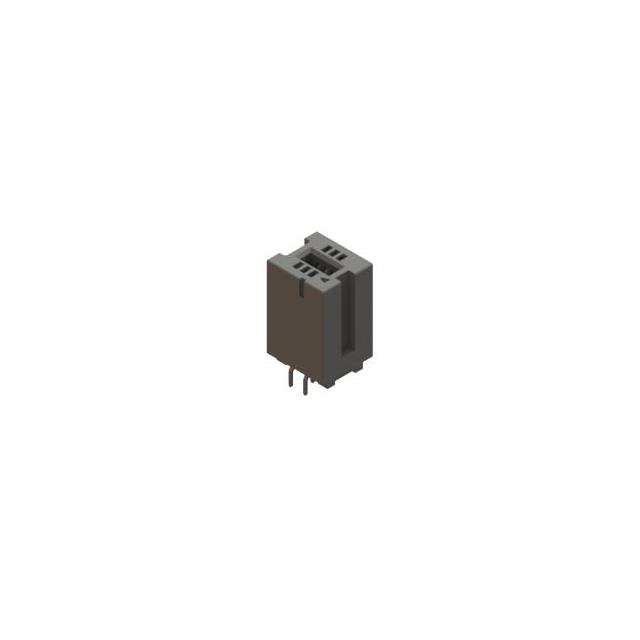

The EDAC Inc. 302-006-321-201 is a standard card edge connector from the 302 series, designed for dual-edge board applications. It features a contact spacing of 0.05 inches (1.27mm) and provides 6 positions in a female configuration. The contacts are gold-plated to ensure reliable signal transmission. This component utilizes vertical mounting with extender board tails, facilitating secure connection to printed circuit boards without requiring mounting lugs on the housing.

Edgeboard Connectors Feature Summary

• Dual-edge card edge connector design for non-specified boards
• Gold-plated contacts for enhanced conductivity
• Vertical mounting orientation with extender board tails

Edgeboard Connectors Applications

• Electronic module interconnection
• Industrial control systems
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm exact contact plating thickness and housing material variations. Ensure compatibility with the target PCB stack-up dimensions before procurement. Cross-reference the Mouser or DigiKey part numbers for accurate availability status in your region.

Edgeboard Connectors Selection Notes

Select this connector when a low-profile, dual-edge interface with fine pitch is required. The 1.27mm spacing suits high-density layouts. Confirm that the host board thickness falls within the connector's acceptance range. Verify that the vertical tail configuration aligns with the assembly process requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 302 series, which specializes in compact card edge solutions. The series offers various pin counts and configurations tailored for space-constrained electronic designs. The 302-006-321-201 specifically addresses needs for small-form-factor modules requiring robust electrical connections.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 302 series variants with matching pin counts and spacing. Verify mechanical footprint and electrical ratings before substitution. Ensure alternative parts maintain the same gold plating specification for equivalent performance.
