302-060-358-201

Edgeboard Connectors Overview

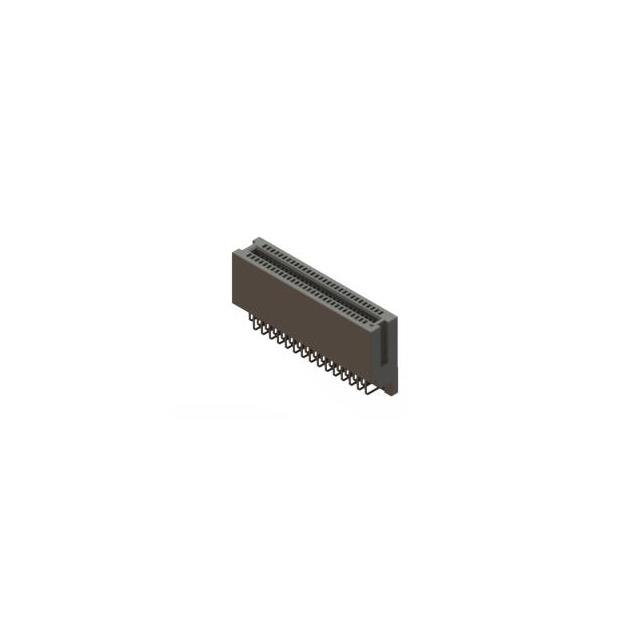

The EDAC 302-060-358-201 is a standard card edge connector from the 302 series, featuring a 0.05-inch (1.27mm) contact spacing. It provides 60 positions in a dual-row female configuration with gold flash-plated contacts. Designed for non-specified dual-edge cards, it utilizes a black polyamide housing and supports board thicknesses ranging from 0.051 to 0.071 inches. The component operates within a temperature range of -55°C to 85°C and employs a cantilever contact type for reliable signal transmission.

Edgeboard Connectors Feature Summary

• Dual-row female configuration with gold flash-plated cantilever contacts
• Black polyamide insulation housing without mounting lugs
• Compatible with non-specified dual-edge circuit boards

Edgeboard Connectors Applications

• Industrial control systems requiring compact interconnects
• Medical equipment internal module connections
• Consumer electronics board-to-board interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure correct contact plating and housing variations. Confirm that the target application requires the 302 series pitch dimensions. Check current availability status as distribution may vary by region. Ensure compatibility with the intended PCB stack-up before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a 1.27mm pitch dual-edge connector is required for space-constrained designs. The absence of mounting lugs makes it suitable for applications where panel mounting is unnecessary or handled separately. Consider the operating temperature range and material composition to ensure environmental resilience matches the deployment conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 302 series, which specializes in low-profile card edge connectors. The series is characterized by its fine 0.05-inch spacing and robust construction using copper alloy contacts. It serves as a critical interface solution for high-density electronic assemblies across various industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 302 series variants with matching pin counts and spacing, such as 302-060-256-201. Cross-brand replacements require strict adherence to the 1.27mm pitch and dual-edge card specifications to maintain mechanical fit.
