3020-08-0100-00

Headers, Male Pins Overview

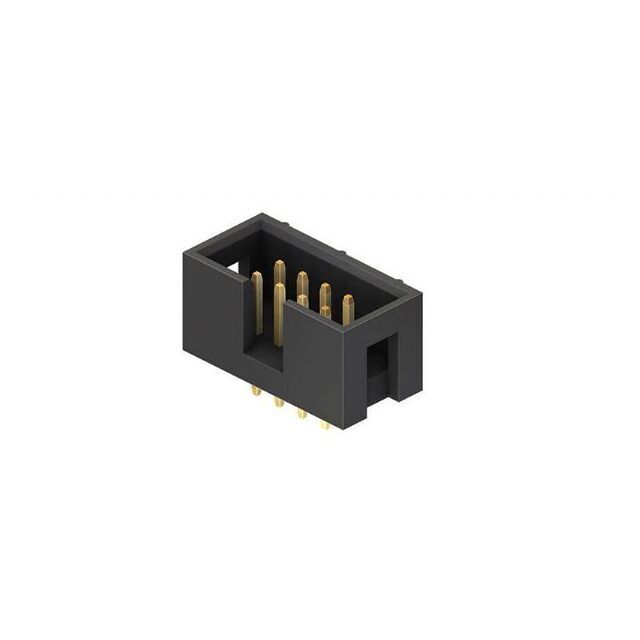

The CNC Tech 3020-08-0100-00 is a vertical header connector designed for board-to-cable or wire applications. It features 8 positions arranged in a dual-row configuration with a 0.100-inch (2.54mm) mating pitch. The connector utilizes male pins with gold plating and is intended for through-hole termination. It includes a four-sided shroud to ensure proper alignment during assembly.

Headers, Male Pins Feature Summary

• Vertical board-to-cable/wire header design
• Dual-row configuration with eight positions
• Four-sided shrouded housing for alignment
• Through-hole termination method

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board connections
• General electronic circuit assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number against manufacturer documentation to confirm pin count, pitch, and termination style. Ensure compatibility with mating connectors regarding shroud type and row configuration. Check for any recent product change notices that may affect material composition or manufacturing processes prior to procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, dual-row header is required for direct PCB mounting. Confirm that the application environment does not exceed the thermal ratings of the polyamide insulation. Verify that the mating cable or wire gauge is compatible with the terminal design for reliable electrical contact.

Headers, Male Pins Part Context

This component belongs to the CNC Tech 3020 series of rectangular connectors. The series offers various position counts and termination options for standard 0.100-inch pitch applications. It is commonly used in industrial and consumer electronics where reliable board-to-wire connectivity is necessary.
