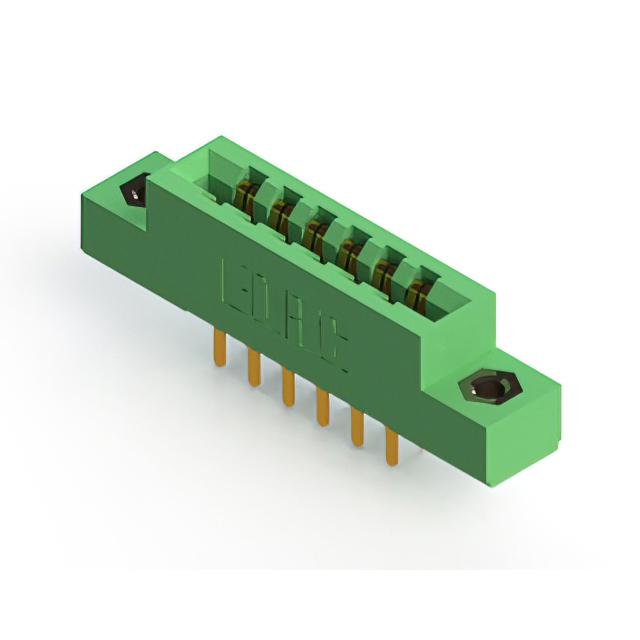

305-012-520-207

$6.71

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:b56781cf2825 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-012-520-207 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-012-520-207

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：6
Number of Positions：12
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-012-520-207

305-012-520-207

Edgeboard Connectors Overview

The EDAC Inc. 305-012-520-207 is a standard card edge connector header from the 305 Series, designed for panel mount applications with a vertical orientation. It features 12 positions arranged in a dual row configuration with a 3.96 mm (0.156 inch) pitch. The connector supports a maximum PCB thickness of 1.57 mm and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. Rated for 5 A continuous current, it employs a solder pin termination method for secure board attachment.

Edgeboard Connectors Feature Summary

Accepts between-contact and in-contact polarizing keys for precise alignment
Provides high dielectric strength with 1800VACrms insulation capability
Features gold-plated contacts on copper alloy substrates for durability

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment modules
Test and measurement instrumentation boards
Computer peripheral interface connections

Edgeboard Connectors Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official EDAC documentation. Confirm that the specific suffix matches the required contact plating and housing material specifications. Ensure compatibility with the target PCB stack-up and verify that the 12-position dual-row layout aligns with the design footprint requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a robust 12-position connection is required for vertical panel mounting. The 3.96 mm pitch accommodates standard card edge widths, while the 5 A rating suits moderate power distribution needs. Consider the polarizing key acceptance feature if mechanical locking against mating cards is necessary for the specific application environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, a line of standard card edge connectors known for their versatility in industrial and commercial electronics. The series offers various position counts and configurations, allowing engineers to scale connectivity solutions while maintaining consistent mechanical and electrical performance standards across different product designs.
