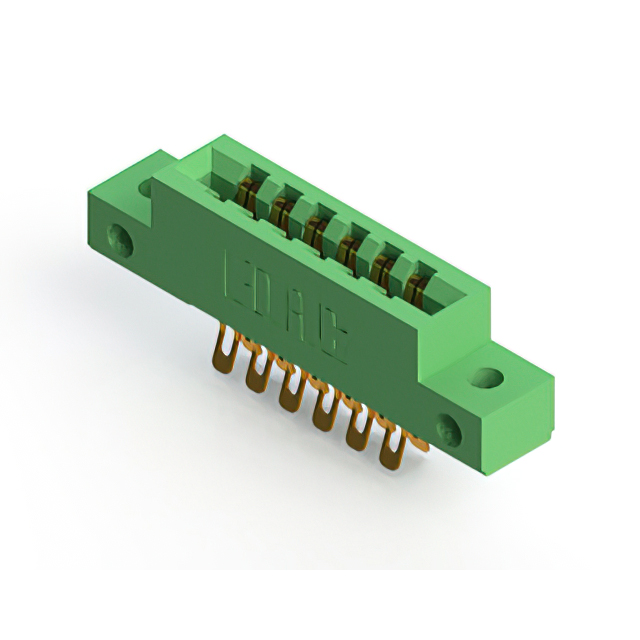

305-012-555-212

$7.79

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Bulk

SKU:08f3635db72b Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-012-555-212 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-012-555-212

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：6
Number of Positions：12
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Extender
Mounting Type：Board Edge, Straddle Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-012-555-212

305-012-555-212

Edgeboard Connectors Overview

The EDAC Inc. 305-012-555-212 is a standard card edge connector from the 305 series, designed for vertical panel mount applications. It features a dual female configuration with 12 positions and a contact spacing of 3.96 mm (0.156 inches). The connector utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator body. It accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches) and provides a continuous current rating of 5 A.

Edgeboard Connectors Feature Summary

Accepts between-contact and in-contact polarizing keys for secure board retention
Vertical panel mount design with solder lug termination
Gold-plated copper alloy contacts ensure reliable electrical performance

Edgeboard Connectors Applications

Industrial control systems requiring robust card edge interfaces
Telecommunications equipment utilizing modular board architectures
Test and measurement devices needing high-reliability interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm terminal type and plating specifications against project requirements. Ensure compatibility with the target PCB thickness of 1.57 mm. Confirm that the dual female configuration aligns with the mating card edge design. Check for RoHS compliance status if environmental regulations apply to the final assembly.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for double-sided card edges. The 3.96 mm pitch suits applications needing wider spacing between signal lines. The 5 A current rating supports moderate power distribution needs. Consider the polarizing key acceptance feature if mechanical stability against vibration is critical for the installation environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and row configurations to accommodate different board sizes. The 305 series is characterized by its low-profile insulator body and durable thermoplastic construction, suitable for demanding industrial environments.
