305-012-555-512

Edgeboard Connectors Overview

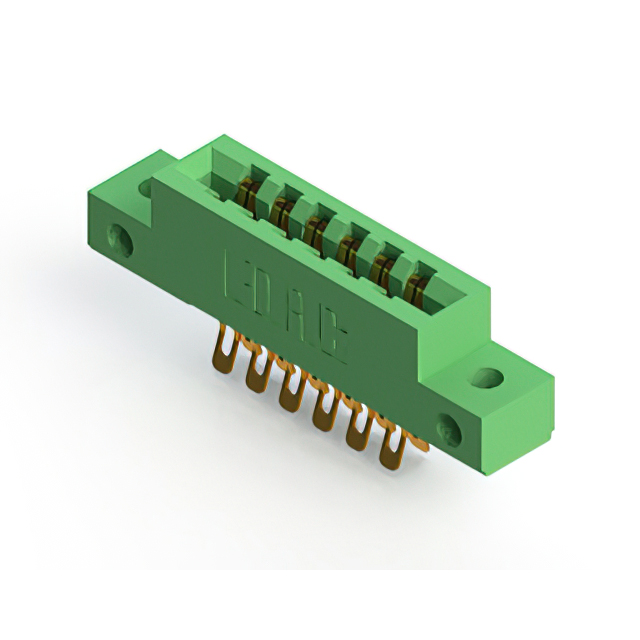

The EDAC Inc. 305-012-555-512 is a standard card edge connector from the 305 series, designed for dual female board-to-board connections. It features 12 positions with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.140 inches (3.56 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts featuring gold plating and a green thermoplastic polyester insulator, it supports panel mount installation at a vertical angle.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Low-profile insulator body constructed from thermoplastic polyester
• Panel mount design with vertical orientation for stable integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules
• Automotive electronic control units

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official EDAC ordering guide to confirm exact mechanical dimensions and termination style. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm RoHS compliance status if required by project specifications. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current availability status before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge interface is required for vertical panel mounting. The 0.156-inch pitch suits applications needing wider spacing between signal lines. Verify that the housing material meets environmental temperature requirements. Ensure the solder lug termination method aligns with the assembly process capabilities and mechanical stress constraints of the final enclosure design.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which provides a range of standard card edge solutions. The series offers various position counts and termination options to accommodate different board densities. The 305-012 variant specifically addresses needs for moderate channel counts in compact form factors. It complements other series like 315 and 355 by providing standardized mechanical interfaces for diverse electronic system architectures.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 series ordering guide for direct substitutes with differing pin counts or termination styles. Verify mechanical footprint compatibility before considering alternative manufacturers. Ensure electrical ratings and material specifications match the original design requirements to maintain system integrity.
