305-012-556-201

Edgeboard Connectors Overview

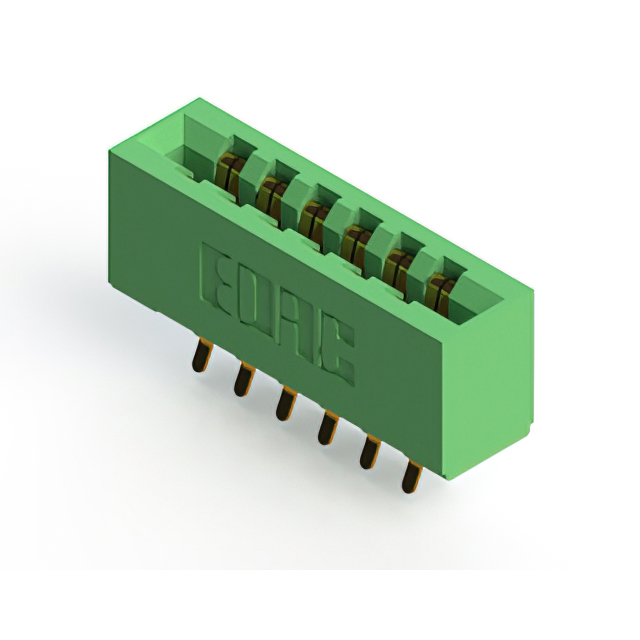

The EDAC Inc. 305-012-556-201 is a standard card edge connector from the 305 series, designed for panel mount applications with a vertical orientation. It features a dual female configuration with 12 positions and a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and solder pin termination. It accommodates board thicknesses ranging from 1.37 mm to 1.78 mm and supports a current rating of 5 A.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure structural integration
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Dual row female configuration for high-density connections

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB thickness limits before procurement. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents to meet regulatory requirements.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for double-sided card edge applications. The 3.96 mm pitch suits designs needing wider spacing between contacts. Verify that the mating card thickness falls within the specified mechanical tolerance range to ensure proper contact engagement and retention force.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series, which specializes in heavy-duty card edge connectors. The series offers various configurations for different mounting styles and contact counts. The 305 series is characterized by its durable thermoplastic housing and consistent electrical performance across multiple industrial grades.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 305 series variants with matching 12-position counts and 3.96 mm pitch. Cross-reference mechanical dimensions and contact plating requirements when considering alternative manufacturers' offerings.
