305-014-520-204

$4.91

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:7dbb969e6ec8 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-014-520-204 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-014-520-204

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：7
Number of Positions：14
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-014-520-204

305-014-520-204

Edgeboard Connectors Overview

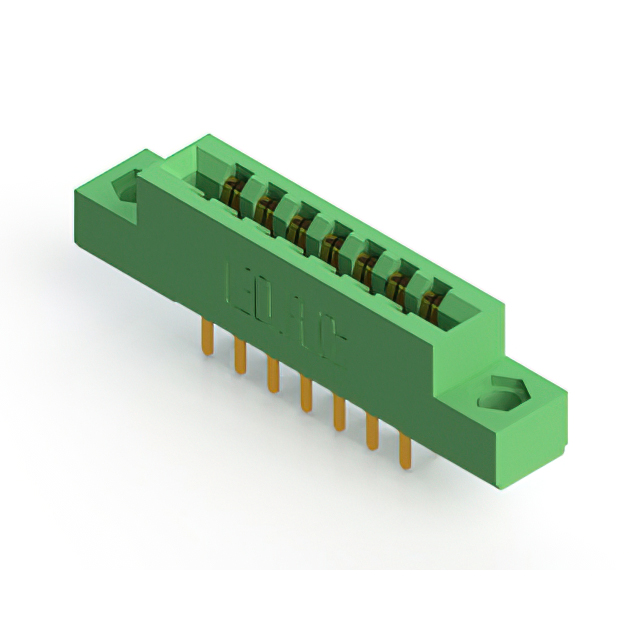

The EDAC Inc. 305-014-520-204 is a dual-edge female card edge connector featuring 14 positions with a 0.156-inch (3.96 mm) spacing. Designed for non-specified dual-edge cards, it utilizes gold-plated contacts and a green thermoplastic polyester insulator. The component supports panel mount installation via solder termination and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual-edge female configuration for secure board insertion
Gold-plated copper alloy contacts ensure reliable conductivity
Thermoplastic polyester insulation provides thermal stability

Edgeboard Connectors Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Automotive electronic module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current catalog to confirm plating thickness and flange dimensions. Ensure compatibility with the target PCB panel mounting requirements and verify RoHS compliance status prior to final procurement authorization.

Edgeboard Connectors Selection Notes

Select this model when a 14-position dual-edge interface is required with a 3.96 mm pitch. Confirm that the mating card thickness falls within the specified operational range and that the panel mounting style aligns with the mechanical enclosure design constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, a line of standard card edge connectors designed for high-reliability applications. The series offers various position counts and mounting options, providing standardized interfaces for modular electronic systems requiring robust signal transmission.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers such as 305-014-521-202 for similar specifications. Verify dimensional tolerances and contact geometry before substituting to ensure mechanical fit and electrical continuity in existing assemblies.
