305-014-520-507

Edgeboard Connectors Overview

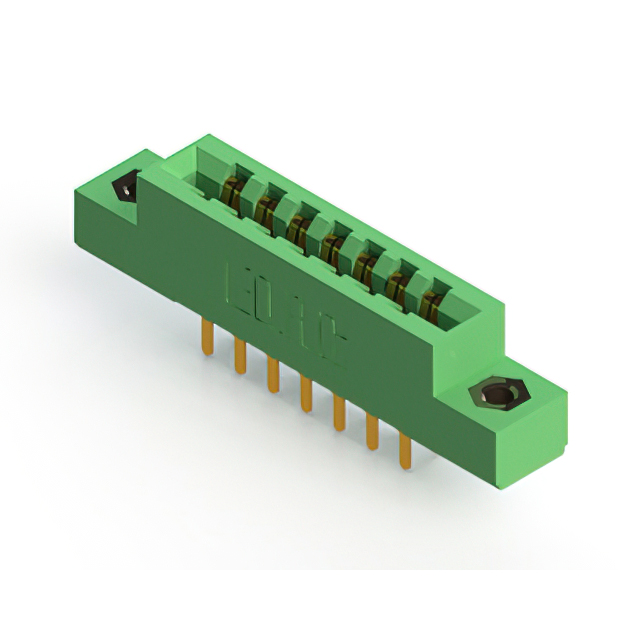

The EDAC Inc. 305-014-520-507 is a standard card edge connector from the 305 series, designed for panel mount applications with vertical orientation. It features a dual female configuration with 14 positions and a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts with solder pin termination. It supports PCB thicknesses ranging from 1.37 mm to 1.78 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for non-specified card edge boards
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Panel mount installation style with vertical orientation
• Thermoplastic polyester insulation housing provides structural stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules
• Embedded computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 14-position dual female specification before procurement. Confirm compatibility with the target PCB thickness range of 1.37 mm to 1.78 mm. Ensure the application environment remains within the specified operating temperature limits of -40°C to +105°C. Check RoHS compliance status if required by project regulations.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel-mount solution is required for double-sided card edge connections. The 3.96 mm pitch accommodates standard board layouts. Consider the gold plating for corrosion resistance in demanding environments. Verify that the flange characteristics meet the mechanical mounting requirements of the enclosure design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting options. The 305-014 variant specifically addresses low-pin-count interface needs. It is manufactured by EDAC Inc., a specialist in interconnection solutions.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 305 series parts with matching 14-position dual female specifications. Cross-reference pitch and PCB thickness tolerances to ensure mechanical fit. Verify identical electrical ratings and material compositions for equivalent performance.
