Edgeboard Connectors Overview

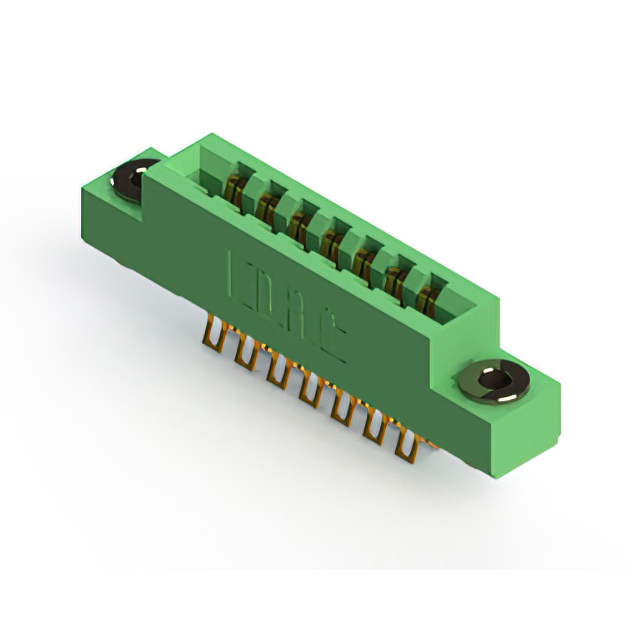

The EDAC Inc. 305-014-555-203 is a dual-edge female card edge connector designed for straddle mount installation. It features 14 positions with a 0.156-inch (3.96mm) pitch and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The contacts are gold-plated copper alloy, providing reliable electrical performance within an operating temperature range of -40°C to +105°C. This component serves as a card extender in electronic assemblies.

Edgeboard Connectors Feature Summary

• Straddle mount design for secure board edge connection
• Gold-plated contacts ensure durability and conductivity
• Dual-row configuration supports high-density signal routing

Edgeboard Connectors Applications

• Electronic assembly card extension
• Industrial control system interconnects
• Telecommunications equipment mounting

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's current ordering guide to confirm exact mechanical dimensions and contact plating specifications. Ensure compatibility with the target PCB thickness and mounting requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge female connector with a 0.156-inch pitch is required for straddle mounting applications. Confirm that the 14-position count aligns with the circuit design needs and that the operating temperature range meets environmental conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles, utilizing consistent spacing and material properties across the family to simplify inventory management for engineers designing modular electronic systems.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants for alternative pin counts or mounting styles. Verify mechanical fit and electrical continuity with any substitute components from different manufacturers.
