305-014-555-507

Edgeboard Connectors Overview

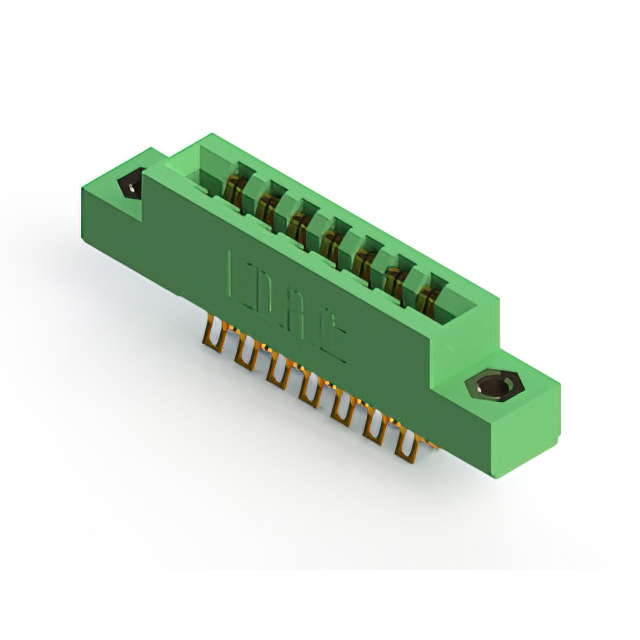

The EDAC Inc. 305-014-555-507 is a standard card edge connector from the 305 series, designed for panel mount applications. It features a dual-edge female configuration with 14 positions and a 0.156-inch (3.96 mm) pitch. The contacts are gold-plated copper alloy, rated for 5 amps current, with a maximum contact resistance of 10 milliohms. Termination is achieved via solder pins, and the unit supports board thicknesses within specified mechanical limits.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure card insertion
• Gold plating on mating areas ensures reliable signal transmission
• Panel mount installation style provides stable structural support
• Solder pin termination allows for robust circuit board attachment

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Embedded computing module mounting solutions

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm plating specifications and contact material composition. Ensure compatibility with target PCB board thickness ranges before procurement. Confirm RoHS compliance status matches project environmental requirements. Cross-reference the manufacturer part number against distributor listings to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required. Ensure the application environment does not exceed the thermal ratings associated with the plastic insulation material. Verify that the panel mount style aligns with the mechanical enclosure design constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of edgeboard connectors. The series offers various position counts and termination styles. The 305-014 variant specifically addresses low-pin-count dual-edge applications requiring high reliability in industrial settings.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 305 series parts with identical pitch and position counts. Verify mechanical dimensions and terminal configurations before replacing.
