305-014-555-558

Edgeboard Connectors Overview

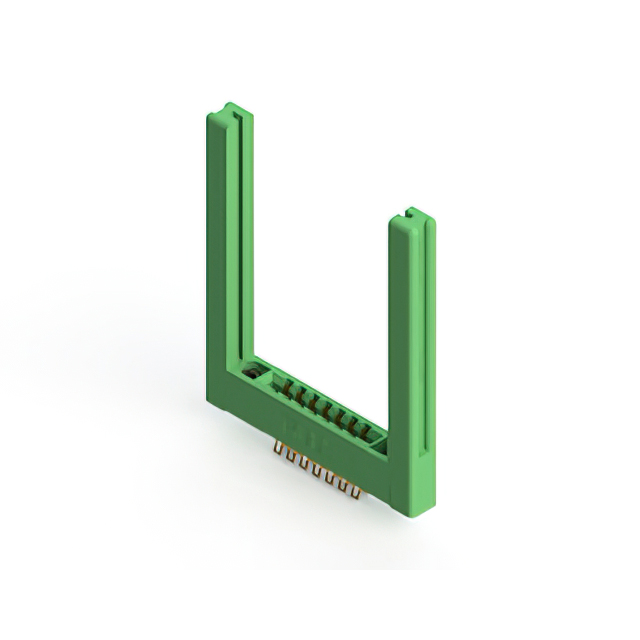

The EDAC Inc. 305-014-555-558 is a standard card edge connector designed for panel mount applications with a vertical orientation. It features a dual female configuration with 14 positions and a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts and a green thermoplastic insulator body. It accepts printed circuit boards with a thickness range of 0.054 to 0.070 inches (1.37 to 1.78 mm) and offers a continuous current rating of 5 A.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure board alignment
• Features a low-profile insulator body with flush mounting flange characteristics
• Utilizes half-bellows contact type for reliable signal transmission

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standardized board thicknesses
• Test and measurement devices needing polarized connection points

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with required polarizing key configurations and termination styles. Confirm that the thermal and electrical ratings align with the target application environment before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female connector with a 3.96 mm pitch is required for vertical panel mounting. Ensure the host PCB thickness falls within the specified 1.37 to 1.78 mm range to guarantee proper mechanical engagement and electrical performance.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series, which provides a comprehensive range of card edge connectors. The series supports various position counts and row configurations, catering to diverse electronic interconnection needs across multiple industries with standardized form factors.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with differing position counts or contact materials. Verify mechanical footprint compatibility when considering alternative manufacturers' products.
