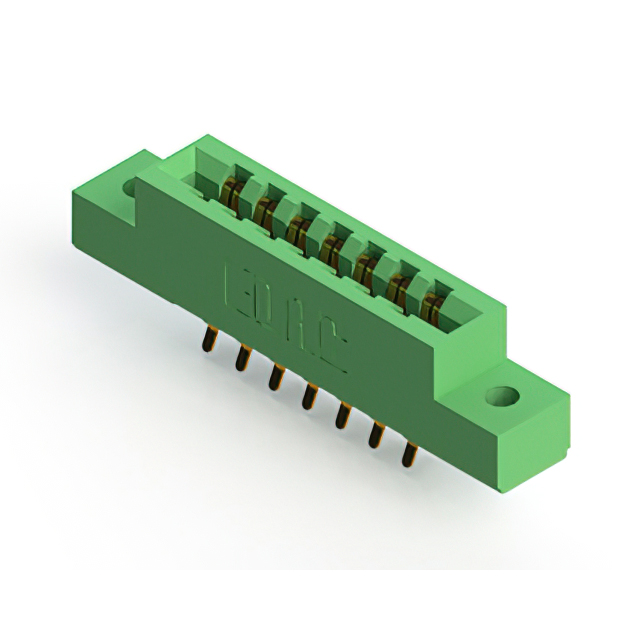

305-014-556-202

$6.71

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:32d764afb695 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-014-556-202 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-014-556-202

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：7
Number of Positions：14
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Extender
Mounting Type：Board Edge, Straddle Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-014-556-202

305-014-556-202

Edgeboard Connectors Overview

The EDAC Inc. 305-014-556-202 is a dual-row female card edge connector designed for vertical panel mounting. It features 14 positions with a 0.156-inch (3.96 mm) pitch and accepts board thicknesses of 0.054 to 0.070 inches. The contacts are made of copper alloy with a gold plating finish, ensuring reliable signal transmission. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C. The housing is constructed from thermoplastic polyester, providing insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

Dual-row configuration for high-density interconnect applications
Gold-plated semi-waffle contact design for durability
Panel-mount flange with top opening for secure installation

Edgeboard Connectors Applications

Industrial control system backplanes
Telecommunications equipment interfaces
Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official ordering guide to ensure correct pin count, termination style, and flange configuration. Confirm RoHS compliance status and environmental certifications required for the target application. Cross-reference the datasheet dimensions with the PCB layout to guarantee mechanical fit and proper clearance during assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-row interface with a 3.96 mm pitch is required for panel-mounted systems. Ensure the host board thickness falls within the specified 1.37 mm to 1.78 mm range. Consider the 5 A current rating and thermal operating limits when designing the power distribution network. Verify that the vertical mounting orientation aligns with the chassis design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting options, including cross-ride and panel styles. These connectors are engineered for robust performance in demanding environments, utilizing thermoplastic insulators and copper alloy contacts with gold finishes for consistent electrical connectivity.
