305-014-556-208

$8.54

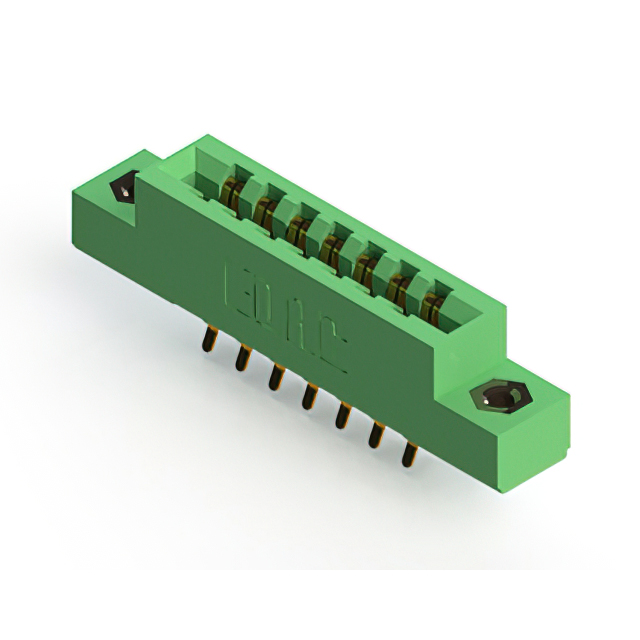

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:0f89ce05cf55 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-014-556-208 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-014-556-208

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：7
Number of Positions：14
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Extender
Mounting Type：Board Edge, Straddle Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-014-556-208

305-014-556-208

Edgeboard Connectors Overview

The EDAC Inc. 305-014-556-208 is a standard card edge connector header featuring 14 positions with a 3.96 mm pitch and dual-edge female contacts. It utilizes gold-plated copper alloy terminals and solder lug termination for secure panel mounting at a vertical angle. Designed for 1.57 mm nominal thickness printed circuit boards, the unit operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

Dual-edge female contact configuration for robust board insertion
Gold-plated copper alloy terminals ensuring reliable conductivity
Solder lug termination style facilitating stable panel installation

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact plating thickness, housing color, and termination style variations. Ensure compatibility with the target PCB stack-up and verify that the selected variant meets all required environmental certifications for the intended deployment zone.

Edgeboard Connectors Selection Notes

Select this component when a 3.96 mm pitch dual-edge connection is required for 1.57 mm thick substrates. The vertical panel mount design suits applications needing direct chassis integration. Confirm that the 14-position count aligns with signal requirements and that the operating temperature range covers the environmental conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts while maintaining consistent 3.96 mm spacing and 1.57 mm board thickness compatibility. The 305-014-556-208 represents a specific configuration within this family optimized for 14-contact interface needs.
