305-014-556-504

Edgeboard Connectors Overview

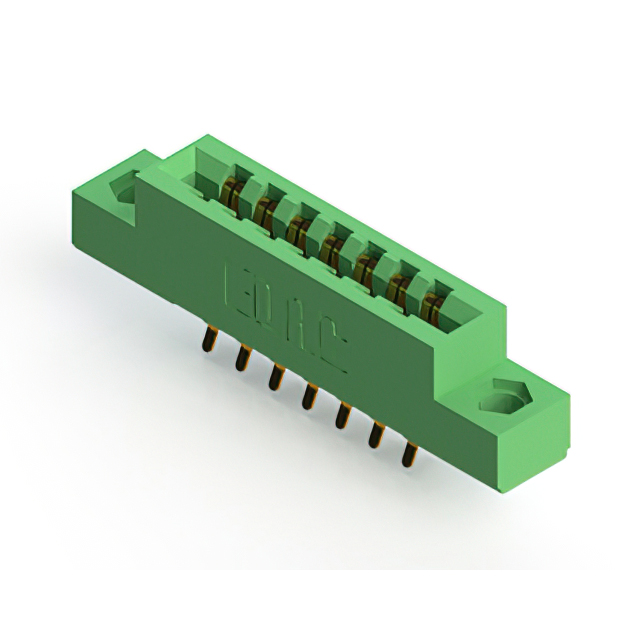

The EDAC 305-014-556-504 is a standard card edge connector featuring 14 positions in a dual-row configuration. It utilizes a 3.96 mm (0.156 inch) pitch and supports PCB thicknesses ranging from 1.37 mm to 1.78 mm (0.054" to 0.070"). Designed for vertical panel mount installation, the unit employs solder pin termination with gold-plated copper alloy contacts. The housing is constructed from green thermoplastic polyester, rated for operation between -40°C and +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design accommodates non-specified board types
• Panel mount flange features top opening with no threading
• Semi-waffle contact type ensures secure board retention

Edgeboard Connectors Applications

• Vertical panel mounting interfaces
• Edgeboard connection systems
• Industrial control hardware integration

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB dimensions before procurement. Confirm current availability status through authorized distributors as supply conditions may vary.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge interface with a 3.96 mm pitch is required. Verify that the target printed circuit board thickness falls within the specified 1.37 mm to 1.78 mm range. Confirm that the vertical panel mount style aligns with the mechanical enclosure design requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles. The 305-014 variant specifically provides a 14-position configuration suitable for moderate density interconnect applications requiring robust mechanical stability.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series parts sharing the same 3.96 mm pitch and dual-row layout. Verify identical PCB thickness tolerances and panel mount flange dimensions to ensure mechanical interchangeability without redesign.
