305-016-500-212

Edgeboard Connectors Overview

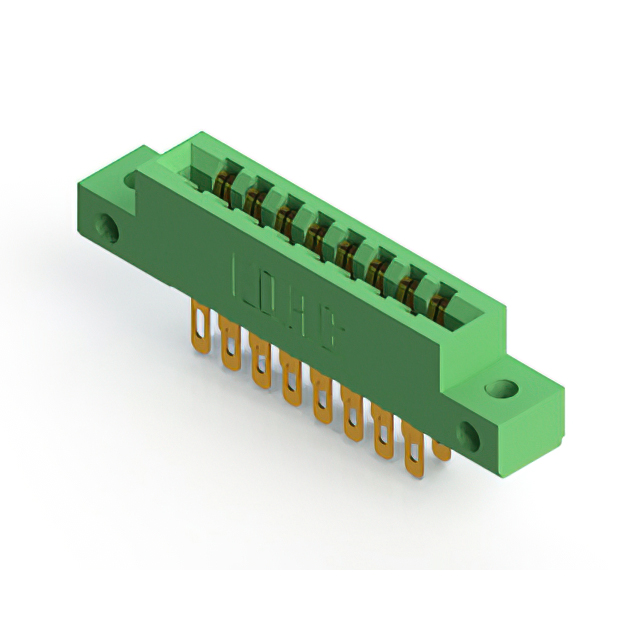

The EDAC Inc. 305-016-500-212 is a standard card edge connector from the 305 series, designed for dual-edge board insertion. It features 16 positions with a contact spacing of 3.96 mm (0.156 inches). The connector supports a maximum PCB thickness of 1.57 mm and operates within a temperature range of -40°C to +105°C. Rated for 5 A current, it utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. Installation is achieved via panel mount solder pin termination.

Edgeboard Connectors Feature Summary

• Dual-edge card interface design for secure vertical board connection
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides structural stability

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring high-density connections
• Industrial control systems utilizing standard card edge interfaces
• Test and measurement equipment needing robust vertical interconnects

Edgeboard Connectors Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official EDAC documentation. Confirm that the specific ordering suffix matches the required contact configuration and termination style. Ensure compliance with relevant environmental standards as specified in the product datasheet before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge card edge connector with 16 positions and 3.96 mm pitch is required. Verify compatibility with the target PCB thickness of 1.57 mm and confirm that the panel mount installation style aligns with the mechanical design constraints of the application enclosure.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series, which specializes in standard card edge connectors. The series offers various position counts while maintaining consistent 3.96 mm contact spacing. These connectors are engineered for applications demanding durable vertical interconnect solutions with standardized mechanical dimensions.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers within the same series or compatible families. Do not assume interchangeability based on generic specifications alone; verify all electrical and mechanical parameters against the original component requirements.
