305-016-500-501

Edgeboard Connectors Overview

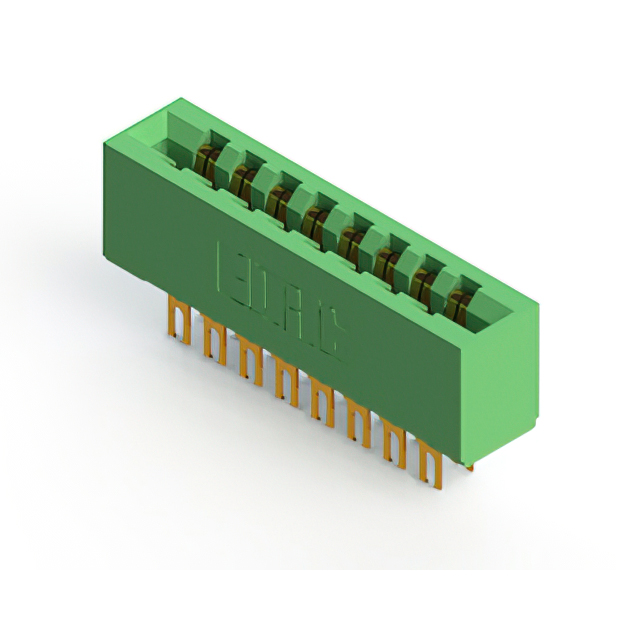

The EDAC Inc. 305-016-500-501 is a standard card edge connector from the 305 series, designed for reliable signal transmission in electronic assemblies. It features a dual-row configuration with 16 positions and a precise pitch of 0.156 inches (3.96 mm). The component utilizes gold-plated copper alloy contacts to ensure low contact resistance and durability. It is engineered for PCB mount applications with a straight installation angle, accommodating a board thickness of 1.57 mm. The housing is constructed from green thermoplastic polyester, providing robust insulation and mechanical stability.

Edgeboard Connectors Feature Summary

• Dual-edge design accommodates double-sided circuit boards for increased I/O density
• Gold-plated contacts provide corrosion resistance and stable electrical performance
• Thermoplastic polyester housing offers high thermal stability and insulation
• Straight mounting style facilitates direct PCB integration

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Telecommunications equipment utilizing standard card edge interfaces
• Computing hardware modules needing reliable signal pathways
• Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required pin count and row configuration before ordering. Confirm compatibility with the target PCB thickness of 1.57 mm to ensure proper seating. Check for any updated environmental compliance certifications if operating in regulated industries. Ensure storage conditions maintain the integrity of the gold plating prior to assembly.

Edgeboard Connectors Selection Notes

Select this model when a dual-row, 16-position interface is required for vertical or straight PCB mounting. Consider the 0.156-inch pitch constraint against available routing space on the board. Evaluate the 5A current rating against the total load requirements of the application. Compare against single-row alternatives if higher density is not necessary for the specific design constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, a line of standard card edge connectors known for versatility. The series typically includes various position counts and termination styles to support diverse electronic designs. The 305-016-500-501 specifically addresses needs for moderate-density connections with robust mechanical locking features typical of the series.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include other 305-series variants with different position counts, such as the 305-018-500-501 or 305-020-500-501, provided the pin count difference is acceptable. Cross-brand replacements require matching the 3.96 mm pitch, dual-row configuration, and 1.57 mm board thickness tolerance.
