305-016-521-502

Edgeboard Connectors Overview

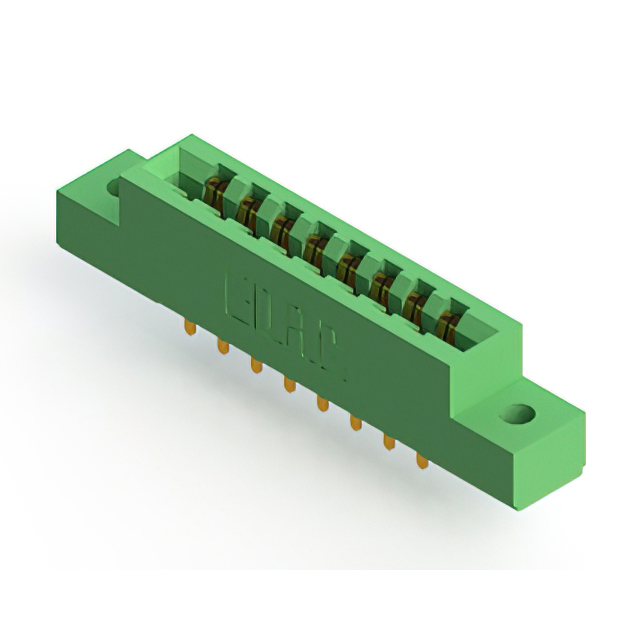

The EDAC Inc. 305-016-521-502 is a dual-edge card edge connector designed for vertical panel mount applications. It features 16 positions with a 0.100 inch (2.54mm) contact pitch and 0.140 inch row spacing. The connector utilizes female contacts with gold plating and accepts printed circuit boards with a nominal thickness of 0.062 inches. Constructed with a low-profile thermoplastic polyester insulator, it supports solder pin termination and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge configuration accommodates non-specified board types
• Gold-plated female contacts ensure reliable signal transmission
• Low-profile insulator body optimizes space efficiency
• Vertical panel mount design facilitates secure installation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment housing
• Test and measurement instrumentation
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact pitch and board thickness compatibility. Ensure the selected variant matches the required panel mounting orientation and insulation material specifications. Cross-reference the part number with current RoHS compliance documentation to meet regulatory standards for the intended deployment region.

Edgeboard Connectors Selection Notes

Select this component when a 0.100 inch pitch dual-edge connector is required for vertical panel mounting. Confirm that the target PCB thickness aligns with the 0.062 inch nominal specification. Evaluate the thermal operating range and contact plating requirements against environmental conditions. Compare alternative series options if different pitch dimensions or board thicknesses are necessary for the system design.

Edgeboard Connectors Part Context

This model belongs to the EDAC 305 Series, which provides standard card edge connectors for various industrial applications. The series offers multiple position counts and pitch options to support diverse connectivity needs. The 305-016-521-502 specifically addresses requirements for 16-position dual-edge connections with precise dimensional tolerances for reliable mating.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitute part numbers. Ensure replacement components maintain identical pitch, row spacing, and board thickness compatibility. Verify that any alternative maintains the same vertical panel mount configuration and contact termination style.
