305-018-520-504

Edgeboard Connectors Overview

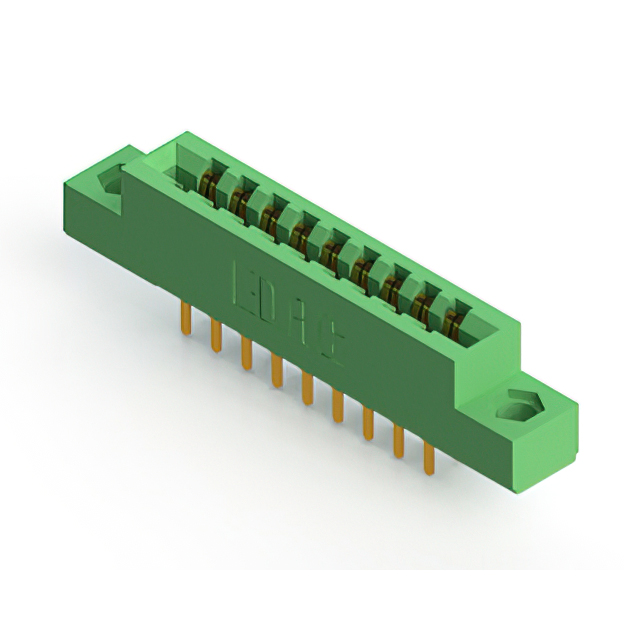

The EDAC Inc. 305-018-520-504 is a standard card edge connector from the 305 series, designed for panel mount applications. It features 18 positions arranged in a dual row configuration with a 3.96 mm (0.156 inch) contact spacing and 3.56 mm row spacing. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Contacts are made of copper alloy with gold plating to ensure reliable signal transmission. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row female connector design accepting non-specified dual-edge PCBs
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic insulator body with low profile construction
• Panel mount installation via through-hole solder termination

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Automotive electronic module connections
• Medical device internal board interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and plating thickness. Ensure compatibility with target PCB thickness tolerances before procurement. Confirm RoHS compliance status through manufacturer datasheets rather than distributor summaries. Validate that the selected variant matches the required panel mounting hardware specifications.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for dual-edge cards. The 3.96 mm pitch suits standard industrial board layouts. Verify that the 1.57 mm board thickness falls within the connector's acceptance range. Consider the 5 A rating for power distribution needs. Ensure the gold contact finish meets environmental durability requirements for the intended application lifecycle.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts and termination options for panel-mounted applications. The 305 series is characterized by its robust thermoplastic housing and reliable gold-plated contact systems. It serves as a foundational interconnect solution for modular electronic assemblies requiring secure mechanical and electrical connections.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
