305-020-555-501

Edgeboard Connectors Overview

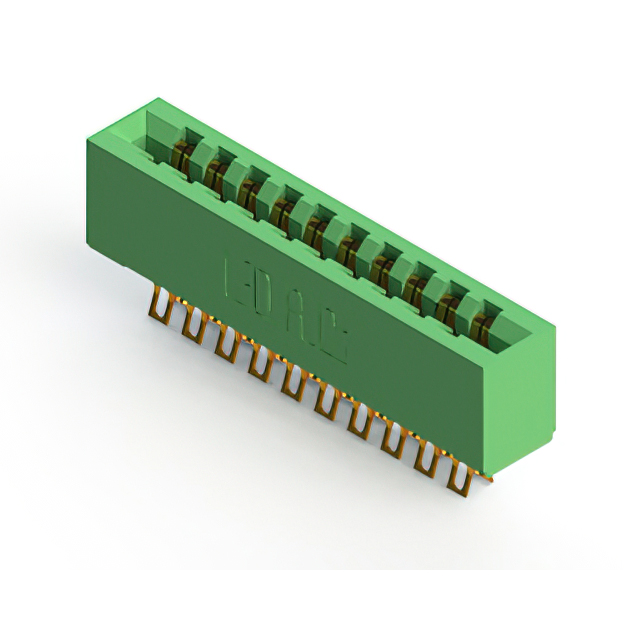

The EDAC Inc. 305-020-555-501 is a standard card edge connector from the 305 series, designed for dual-edge PCB insertion. It features 20 positions with a 3.96 mm pitch and supports a 1.57 mm board thickness. The connector utilizes gold-plated copper alloy contacts rated for 5 A current. It employs a panel mount style with a vertical orientation and solder lug termination. The housing is constructed from thermoplastic material, ensuring reliable electrical performance within specified environmental limits.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure PCB engagement
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic housing provides structural integrity
• Panel mount configuration with vertical installation angle

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules
• Automotive electronic control units

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or certified partners. Confirm RoHS compliance status against current regulatory requirements before integration. Ensure storage conditions maintain contact plating integrity. Validate mechanical dimensions against target PCB layout specifications to guarantee proper fit during assembly processes.

Edgeboard Connectors Selection Notes

Select this model when dual-edge card edge connectivity is required with a 3.96 mm pitch. The 20-position count suits moderate density applications. Verify that the target printed circuit board thickness matches the 1.57 mm specification. Consider the vertical panel mount style if space constraints dictate this orientation over surface mount alternatives.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting configurations. The 305-020-555-501 variant specifically addresses dual-edge applications requiring robust thermal and electrical performance in industrial environments.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts within the EDAC 305 series for alternative position counts. Verify identical pitch and board thickness requirements for direct substitution. Consult manufacturer documentation for updated equivalent part numbers.
