305-022-500-204

Edgeboard Connectors Overview

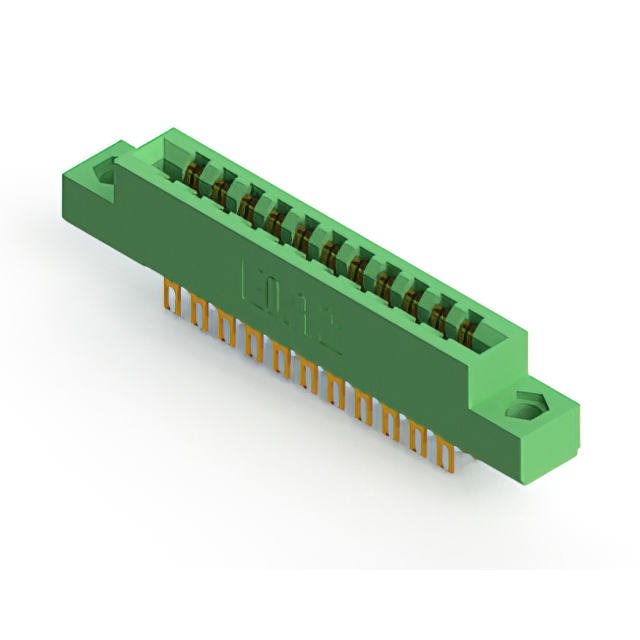

The EDAC Inc. 305-022-500-204 is a standard card edge connector designed for dual-row applications with 22 positions. It features a 3.96 mm (0.156 inch) pitch and utilizes gold-plated contacts to ensure reliable signal transmission. The housing is constructed from green thermoplastic material, providing necessary insulation and mechanical stability. This component supports panel mounting in a vertical orientation and is rated for a current of 5 A per contact.

Edgeboard Connectors Feature Summary

• Dual-row female configuration for high-density board connections
• Gold-plated copper alloy contacts for corrosion resistance
• Vertical panel mount design for secure installation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, plating thickness, and termination style. Ensure compatibility with the target PCB slot dimensions and verify that the selected variant meets all required environmental certifications such as RoHS compliance before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row interface with a 3.96 mm pitch is required for vertical panel mounting. Consider the 5 A current rating and gold plating for durability in demanding environments. Confirm that the PCB slot depth matches the insulator specifications to ensure proper engagement and electrical continuity during operation.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options, catering to diverse electronic assembly needs. The 305-022-500-204 specifically addresses requirements for 22-position dual-row interfaces with solder lug or pin termination styles.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants sharing the same 3.96 mm pitch and 22-position layout. Verify mechanical fit and electrical ratings before substituting with components from different manufacturers to ensure interface compatibility.
