305-022-500-512

Edgeboard Connectors Overview

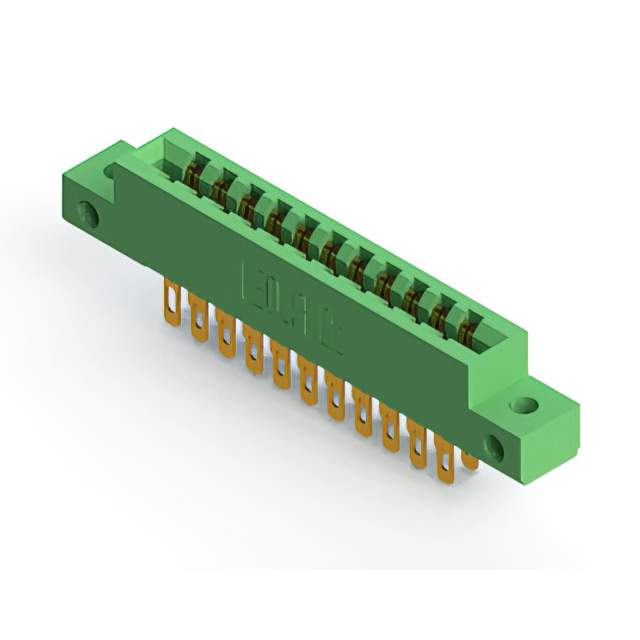

The EDAC 305-022-500-512 is a standard card edge connector header featuring 22 positions arranged in a dual row configuration. It utilizes a 3.96 mm (0.156 inch) pitch and supports a maximum board thickness of 1.57 mm. The contacts are constructed from copper alloy with gold plating, providing a continuous current rating of 5 A. Designed for panel mount installation at a vertical angle, the component employs solder pin termination. The insulator is made of green thermoplastic material.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for robust signal transmission
• Gold-plated copper alloy contacts ensure reliable conductivity
• Vertical panel mount design facilitates secure structural integration

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with system requirements. Ensure that the ordering suffix matches the desired termination style and insulation color specifications. Cross-reference technical parameters such as pitch and current ratings with design constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required. Verify that the target printed circuit board thickness falls within the supported range of up to 1.57 mm. Confirm that the vertical mounting orientation aligns with the mechanical layout of the enclosure.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options to accommodate diverse electronic assembly needs. The 305-022-500-512 variant specifically addresses applications requiring a 22-position dual-row connection with solder pin termination.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives. Verify that any substitute maintains identical pitch, row count, and current rating specifications.
