305-022-555-201

Edgeboard Connectors Overview

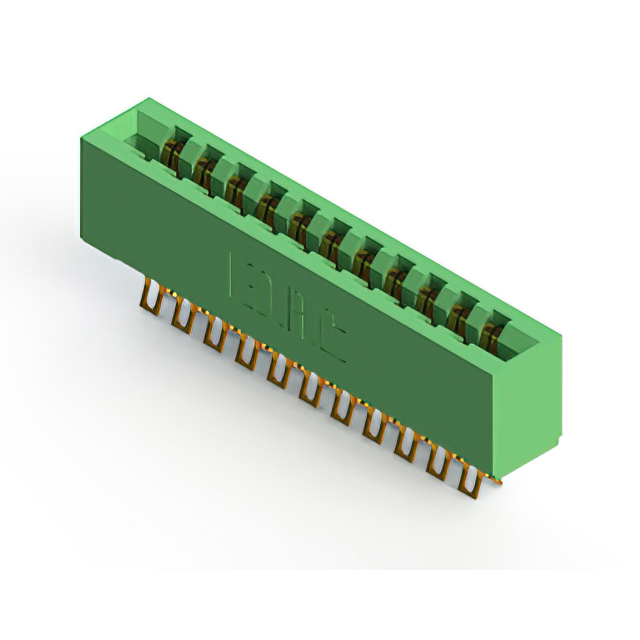

The EDAC Inc. 305-022-555-201 is a standard card edge connector from the 305 series, designed for dual-row applications. It features 22 positions with a 3.96 mm pitch and accommodates board thicknesses of 1.57 mm. The connector utilizes gold-plated copper alloy contacts and thermoplastic polyester insulation. Rated for 5 A current, it supports vertical panel mounting with solder pin termination. Operating temperatures range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row configuration for high-density signal routing
• Gold-plated copper alloy contacts ensure reliable conductivity
• Vertical panel mount design facilitates secure installation
• Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment interface modules
• Test and measurement instrumentation backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact mechanical dimensions and plating specifications. Ensure compatibility with target PCB thickness and mounting constraints before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when dual-row connectivity with a 3.96 mm pitch is required. Verify that the application environment stays within the specified temperature range. Confirm that the vertical panel mount style aligns with the system enclosure design requirements.

Edgeboard Connectors Part Context

This model belongs to the EDAC 305 series of card edge connectors. The series offers various position counts and mounting options. These connectors are engineered for standard card edge applications in demanding electronic environments.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Generic equivalents may not match the precise 3.96 mm pitch or contact material specifications.
