305-024-500-508

Edgeboard Connectors Overview

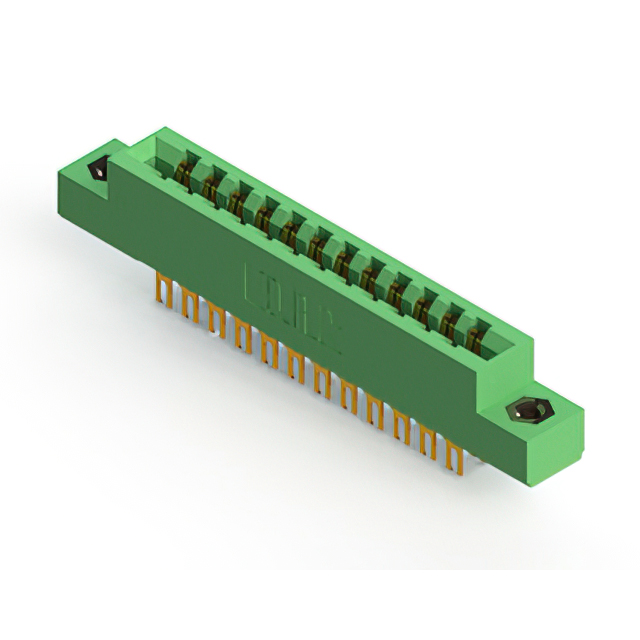

The EDAC Inc. 305-024-500-508 is a standard card edge connector from the 305 series, designed for dual female contact configurations. It features 24 positions with a 0.156-inch (3.96 mm) pitch and supports board thicknesses of 0.054 to 0.070 inches. The connector utilizes gold-plated copper alloy contacts with a solder termination type and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for non-specified card edge applications
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Solder termination style facilitates secure PCB mounting

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment interface modules
• Test and measurement instrumentation backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's ordering guide to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB panel thickness limits defined in the datasheet. Confirm RoHS compliance status through official documentation prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided female connector is required for vertical or straight panel mounting applications. Evaluate the 0.156-inch pitch requirement against existing board layout constraints. Consider the 5 A current rating and thermal operating range for environmental suitability in the intended deployment scenario.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are widely used in modular electronic systems. The series offers various position counts and termination styles to accommodate different circuit board densities and mechanical integration requirements across multiple industrial sectors.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 series ordering guide for alternative part numbers with matching pin counts and pitch dimensions. Verify that any substitute maintains identical electrical ratings and mechanical footprint specifications to ensure seamless integration without redesign.
