305-058-500-501

Edgeboard Connectors Overview

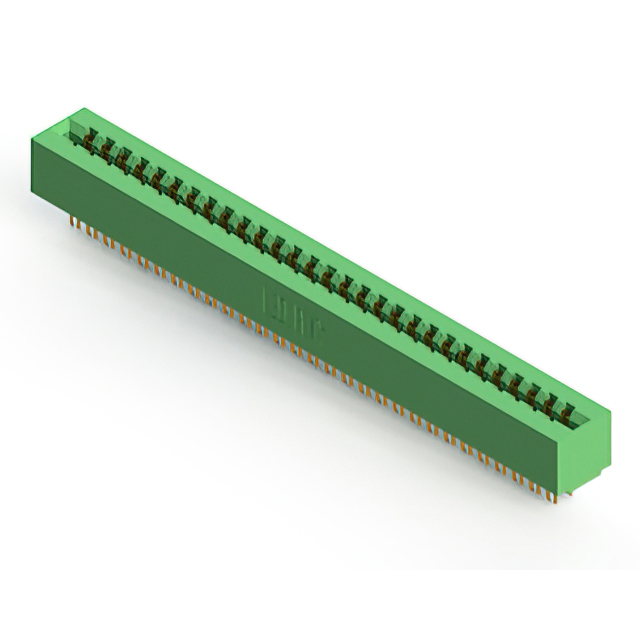

The EDAC Inc. 305-058-500-501 is a standard card edge connector from the 305 series, designed for reliable signal transmission in electronic assemblies. It features 58 positions arranged in two rows with a contact spacing of 0.156 inches (3.96 mm). The component utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator body. Rated for 5 A current, it supports panel mount installation with vertical orientation. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm) and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row header configuration providing 58 connection points for high-density interface requirements
• Gold-plated copper alloy contacts ensure durable electrical performance and corrosion resistance
• Thermoplastic polyester insulator body offers mechanical stability and thermal endurance
• Vertical panel mount design facilitates secure board insertion and structural alignment

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, termination style, and flange characteristics. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status and lead time requirements directly with authorized distributors or the manufacturer, as availability may vary by region and production batch.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with 58 positions is required. Verify that the mating PCB thickness aligns with the 0.062-inch nominal specification. Consider the vertical panel mount orientation for integration into chassis designs. Ensure the 5 A current rating and operating temperature range meet the application's environmental and electrical demands.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by robust construction suitable for demanding environments. The 305-058-500-501 variant specifically addresses applications requiring moderate pin counts with reliable connectivity. It serves as a critical interconnect solution in systems where board-to-panel connections must withstand mechanical stress and thermal cycling.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 series ordering guide for direct substitutes. Compatible alternatives may include variants with different termination styles or flange configurations while maintaining the same 58-position layout and 3.96 mm pitch. Verify dimensional compatibility and electrical ratings before substitution.
