305-058-520-207

Edgeboard Connectors Overview

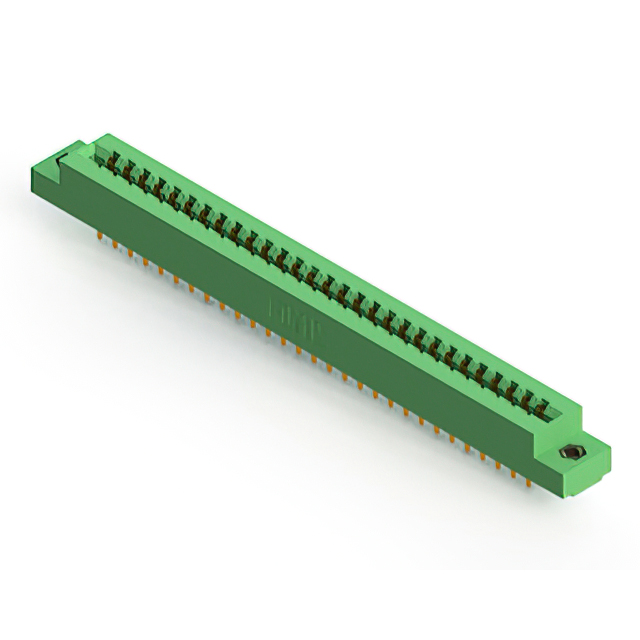

The EDAC Inc. 305-058-520-207 is a standard card edge connector from the 305 series, designed for panel mount applications with a vertical orientation. It features a dual female configuration with 58 positions and a pitch of 3.96 mm (0.156 inches). The connector supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts with solder pin termination. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for secure card edge mating
• Gold-plated copper alloy contacts ensure reliable conductivity
• Vertical panel mount design with solder pin termination

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment signal routing
• Automotive electronics module connections

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with your PCB stack-up and mating card specifications. Ensure that the required current rating and environmental operating conditions align with the component's technical limits before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row interface with a 3.96 mm pitch is required for panel-mounted assemblies. Consider the 58-position count and vertical mounting style for space-constrained designs. Verify that the target PCB thickness matches the 1.57 mm specification to ensure proper mechanical engagement and electrical performance.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors, which are engineered for high-reliability applications in harsh environments. The series provides various position counts and mounting options, utilizing durable thermoplastic housings and corrosion-resistant contact plating to maintain signal integrity over extended operational lifespans.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts within the EDAC 305 series or equivalent manufacturers offering dual-row card edge connectors with identical 3.96 mm pitch and 58-position configurations. Verify mechanical dimensions and contact plating specifications to ensure functional interchangeability.
