305-060-520-502

Edgeboard Connectors Overview

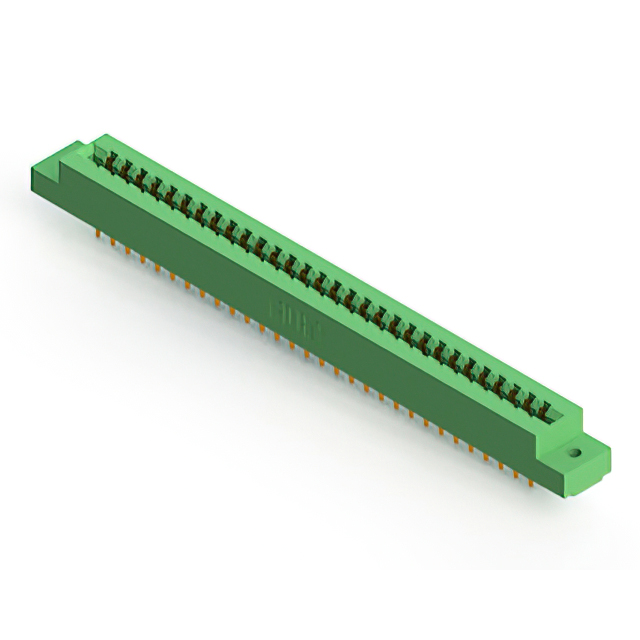

The EDAC Inc. 305-060-520-502 is a standard card edge connector from the 305 series, designed for dual-edge board insertion. It features 60 positions with a 3.96 mm (0.156 inch) pitch and supports a maximum operating temperature of +105°C and a minimum of -40°C. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and includes a thermoplastic housing. Rated for 5 A current, it provides robust electrical performance for industrial applications requiring secure panel-mounted connections.

Edgeboard Connectors Feature Summary

• Dual-row configuration accommodates double-sided card edge PCBs for increased I/O density
• Gold-plated contacts on copper alloy substrates provide corrosion resistance and stable conductivity
• Thermoplastic housing material ensures structural integrity across wide thermal ranges
• Panel mount installation style offers fixed positioning for chassis integration

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backplanes
• Automotive electronics modules
• Medical device instrumentation panels

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer datasheet to confirm contact plating thickness and housing color specifications. Ensure that the receiving facility's environmental controls meet the component's storage requirements. Confirm that the procurement channel sources directly from authorized distributors to guarantee RoHS compliance and authenticity. Check for any regional shipping restrictions or lead time variations before finalizing orders.

Edgeboard Connectors Selection Notes

Select this model when a 60-position interface is required for double-sided circuit boards. The 3.96 mm pitch dictates compatible PCB trace spacing and hole sizes. Verify that the mating card edge thickness aligns with the connector's tolerance range. Consider the vertical panel mount orientation for space-constrained enclosures. Ensure the 5 A current rating meets the system's power distribution needs without excessive heating.

Edgeboard Connectors Part Context

This component belongs to EDAC's 305 Series, a line of standard card edge connectors known for durability in harsh environments. The series offers various position counts and mounting styles. The 305-060-520-502 variant specifically addresses high-pin-count applications where reliable dual-edge connection is critical. It complements other series members by providing a standardized footprint for modular system designs.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers within the EDAC 305 series for alternative position counts or mounting styles. Verify compatibility with existing PCB layouts when substituting similar models. Ensure that any replacement maintains the same 3.96 mm pitch and dual-row configuration to preserve mechanical fit.
