305-060-521-258

Edgeboard Connectors Overview

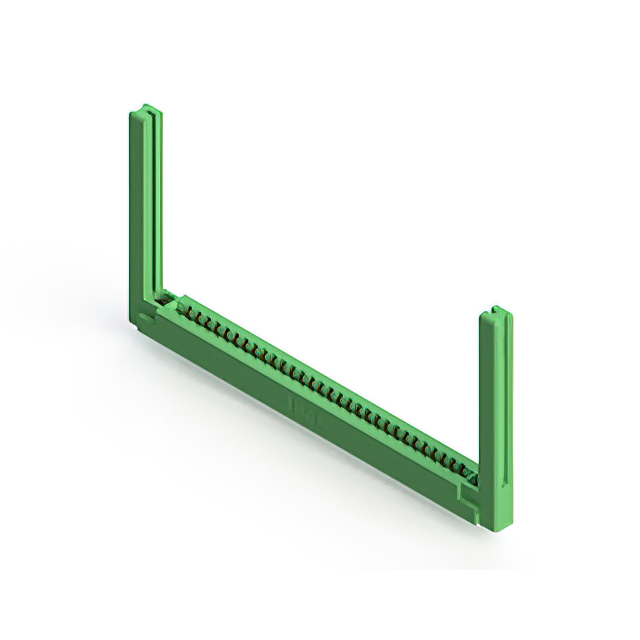

The EDAC Inc. 305-060-521-258 is a dual female card edge connector featuring 60 positions with a 0.156-inch (3.96mm) contact spacing. It utilizes solder pin termination and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component offers a continuous current rating of 5A and withstands 1800VACrms voltage. Designed for panel mounting, it operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure alignment
• Features low profile insulator body construction
• Provides reliable electrical connection through gold-plated copper alloy contacts

Edgeboard Connectors Applications

• Panel-mounted electronic interconnections
• Industrial control system backplanes
• Telecommunications equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to ensure correct configuration. Confirm that the required polarizing key type matches the application needs. Check RoHS compliance status if environmental regulations apply. Ensure the PCB thickness falls within the specified acceptance range before integration.

Edgeboard Connectors Selection Notes

Select this model when a high-density 60-position interface is required for panel mounting applications. Consider the 0.156-inch pitch for compatibility with existing board layouts. Evaluate the 5A current rating against the total load requirements. Verify that the operating temperature range meets the environmental conditions of the deployment site.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts while maintaining consistent 0.156-inch spacing. These connectors are designed for robust industrial environments requiring reliable signal transmission and power distribution across multiple rows.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for verified substitutes. Ensure replacement parts maintain identical 0.156-inch pitch and 60-position count. Verify mechanical compatibility including panel mount dimensions and PCB thickness acceptance.
