Edgeboard Connectors Overview

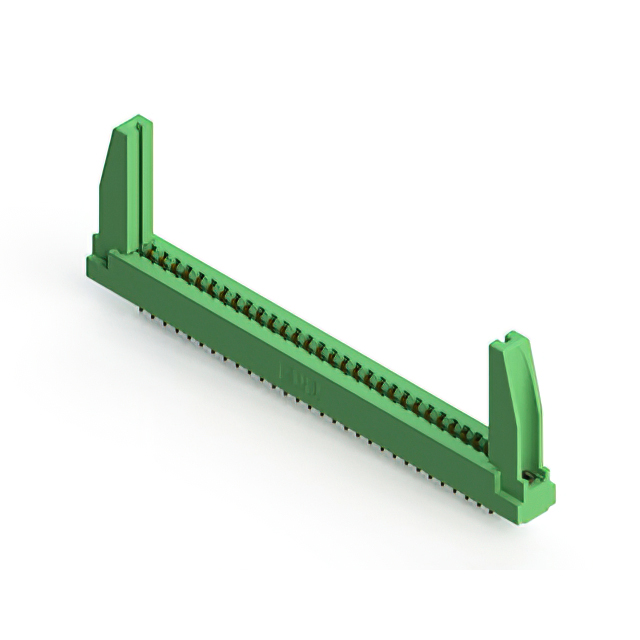

The EDAC Inc. 305-060-556-578 is a standard card edge connector from the 305 series, designed for panel mount applications with a vertical orientation. It features 60 positions arranged in two rows with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and solder pin termination. It accommodates board thicknesses between 1.37 mm and 1.78 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Panel mount vertical installation style with flanged design
• Solder pin termination for stable PCB attachment

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact plating thickness and housing material specifications. Confirm compatibility with target PCB stack-up dimensions before procurement. Ensure supply chain sources provide valid traceability documentation for industrial-grade components.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 60-position interface with a 3.96 mm pitch is required. Verify that the mating card thickness falls within the specified 1.37 mm to 1.78 mm range. Consider the vertical panel mount requirement and operating temperature limits during mechanical design integration.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles. The 305-060 variant specifically provides a high-density connection option for dual-edge boards, maintaining consistent electrical characteristics across the family.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC 305-060-556-203 or 305-060-556-512 for alternative housing colors or minor specification variations within the same series. Verify identical pitch and position count before substitution.
