305-062-500-258

Edgeboard Connectors Overview

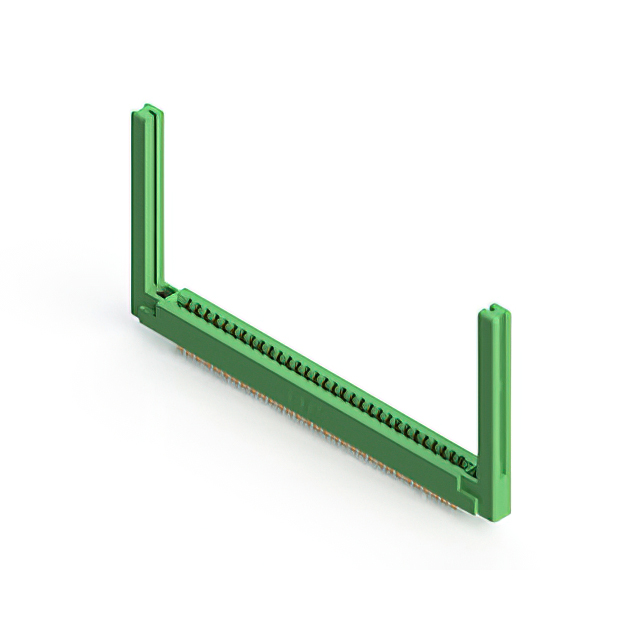

The EDAC Inc. 305-062-500-258 is a standard card edge connector from the 305 series, designed for reliable signal transmission in electronic assemblies. It features 62 positions arranged in a dual-row configuration with a pitch of 3.96 mm (0.156 inches). The connector supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts to ensure low contact resistance and durability. Rated for 5 A current, it employs a solder lug termination type for secure panel mounting. The housing is constructed from thermoplastic material, providing stability across an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row architecture provides high-density connectivity within a compact footprint.
• Gold-plated copper alloy contacts ensure consistent electrical performance and corrosion resistance.
• Solder lug termination facilitates robust mechanical attachment during panel installation.
• Thermoplastic insulation offers structural integrity and thermal stability.

Edgeboard Connectors Applications

• Industrial control systems requiring durable panel-mounted interfaces
• Telecommunications equipment utilizing standard card edge modules
• Test and measurement instrumentation with high-reliability connection needs

Edgeboard Connectors Procurement Notes

Verify that the specific suffix matches the required termination style and mounting orientation for your design. Confirm compliance with RoHS directives if environmental regulations apply to your project. Ensure the receiving facility can handle the specified panel mount requirements. Cross-reference the manufacturer's latest documentation to confirm availability status and any potential supply chain restrictions before finalizing orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required. Ensure the PCB or card thickness aligns with the 1.57 mm specification for proper engagement. Verify that the 5 A current rating meets the circuit's power distribution requirements. Consider the vertical panel mount style and solder lug termination when designing the chassis and assembly process.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are widely used in industrial and commercial electronics. The series offers various position counts and configurations to suit different density requirements. The 305-062-500-258 specifically addresses applications needing 62 connections in a dual-row format, balancing space efficiency with reliable electrical performance.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 305 series parts with identical pitch and row count but different position numbers, such as 305-060-500-258 or 305-064 variants, provided the physical footprint and electrical ratings remain compatible. Always verify mechanical dimensions and termination styles before swapping components.
