305-062-520-207

Edgeboard Connectors Overview

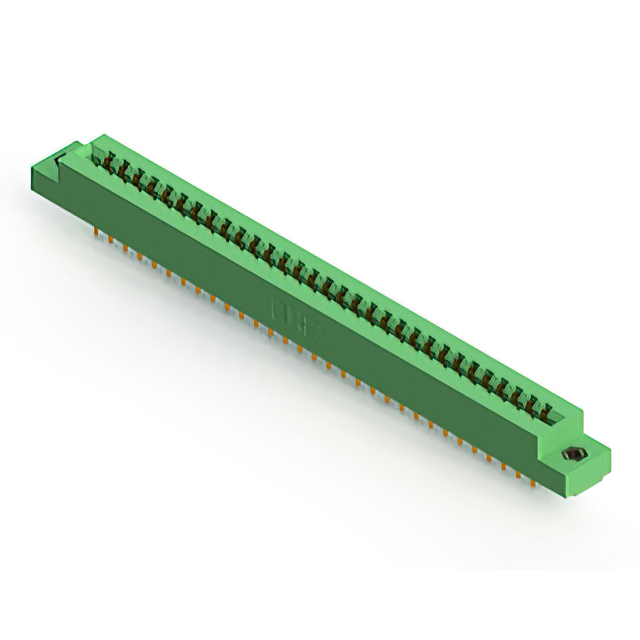

The EDAC Inc. 305-062-520-207 is a standard card edge connector from the 305 series, designed for panel mount applications with a vertical orientation. It features 62 positions arranged in two rows with a contact spacing of 3.96 mm (0.156 inches). The connector supports a PCB thickness of 1.57 mm and utilizes gold-plated copper alloy contacts for reliable signal transmission. Rated for 5 A continuous current, it employs solder pin termination for secure board attachment.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for enhanced alignment and security
• Features gold-plated copper alloy contacts to ensure low resistance and corrosion resistance
• Designed for vertical panel mounting with solder pin termination for robust mechanical stability

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules
• Computing hardware expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin configuration and plating specifications. Ensure compatibility with the target PCB thickness of 1.57 mm during integration planning. Cross-reference the part number with authorized distributors to confirm current availability status and lead times prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with 3.96 mm pitch is required for panel-mounted assemblies. The 62-position count suits applications needing moderate I/O density. Verify that the system environment remains within the specified operating temperature range and that the 5 A current rating meets the electrical load requirements of the connected circuitry.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are engineered for general-purpose electronic interconnections. The series offers various position counts and termination options while maintaining consistent mechanical dimensions and electrical characteristics across the family for design flexibility.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC replacement guide or datasheet for verified substitute part numbers. Ensure any alternative maintains the same 3.96 mm pitch, 62-position count, and vertical panel mount form factor to guarantee mechanical fit and electrical continuity without redesign.
