305-062-521-212

Edgeboard Connectors Overview

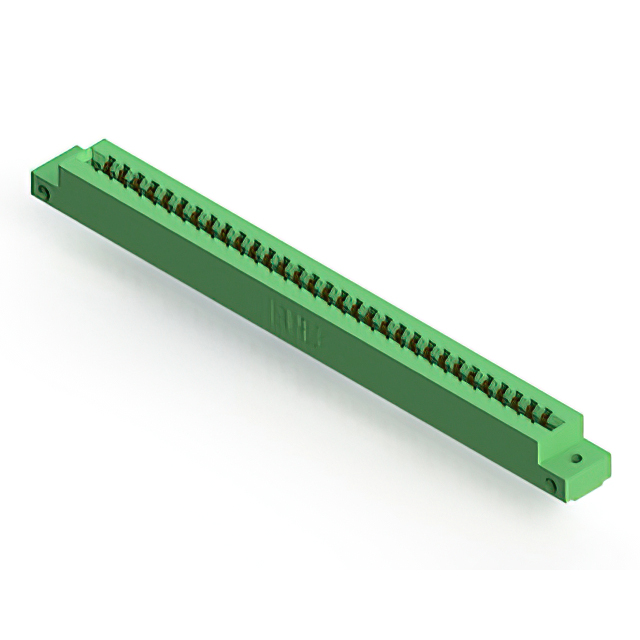

The EDAC Inc. 305-062-521-212 is a standard card edge connector header designed for dual female contact configurations. It features 62 positions with a 0.156-inch (3.96 mm) pitch, accommodating board thicknesses of 1.57 mm. The component utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing to ensure reliable signal transmission. Rated for 5 A current, it supports panel mount installation at a vertical angle with solder pin termination.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge mating
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester housing for structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the ordering suffix matches the required termination style and plating specifications. Cross-reference the datasheet for mechanical dimensions and electrical ratings before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female header with a 0.156-inch pitch is required for panel-mounted applications. Consider the 5 A current rating and gold plating for environments demanding durability. Verify that the target PCB or card thickness aligns with the specified 1.57 mm tolerance for optimal connection integrity.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which provides standard card edge solutions. The series offers various position counts and mounting styles, allowing engineers to scale designs while maintaining consistent mechanical and electrical characteristics across different product lines within the same family.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives. Verify that any substitute maintains the same 0.156-inch pitch, dual female configuration, and panel mount orientation to ensure mechanical fit and electrical performance equivalence.
