305-064-500-278

Edgeboard Connectors Overview

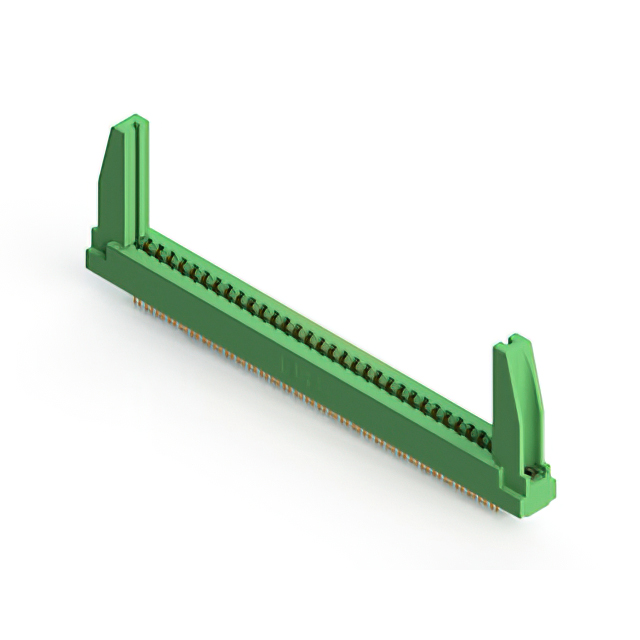

The EDAC Inc. 305-064-500-278 is a dual-edge card edge connector from the 305 Series, designed for high-reliability applications. It features 64 positions with a 0.156-inch (3.96 mm) pitch and accepts between-contact or in-contact polarizing keys. The contacts are gold-plated copper alloy, rated for 5A continuous current and 1800VACrms insulation voltage. Constructed with green thermoplastic polyester insulators, it supports panel mount installation at a vertical angle. The component operates within a temperature range of -55°C to +125°C and utilizes solder pin termination.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure board alignment
• Features gold-plated copper alloy contacts for reliable signal transmission
• Utilizes high-temperature thermoplastic polyester insulators for thermal stability

Edgeboard Connectors Applications

• High-temperature industrial control systems
• Military and aerospace electronic assemblies
• Telecommunications infrastructure equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with required polarization keys and mounting configurations. Confirm that the selected variant matches the intended PCB thickness and contact termination style. Cross-reference the part number with the latest EDAC documentation to validate availability and compliance with current RoHS standards before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with a 3.96mm pitch is required for robust mechanical retention. Ensure the application environment does not exceed the specified operating temperature limits of the green thermoplastic polyester housing. Verify that the PCB design accommodates the necessary polarizing key slots if between-contact or in-contact positioning is utilized for the assembly process.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, which provides various mounting options and contact terminations for card edge applications. The series is characterized by its use of high-temperature insulators and flexible guide solutions. The 305-064-500-278 specifically denotes a 64-position dual female connector configuration within this established product line.

Edgeboard Connectors Replacement Considerations

Consult the EDAC official catalog for direct cross-references. Potential substitutes include variants within the same 305 Series family, such as the 305-064-520-278, provided they match the required pitch, position count, and termination style.
