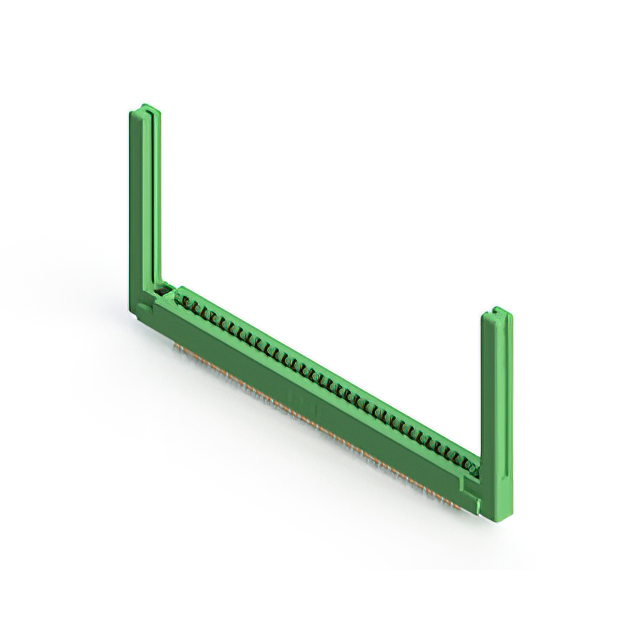

305-064-500-558

$12.36

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:239cc0380ba0 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-064-500-558 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 64POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-064-500-558

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：32
Number of Positions：64
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-064-500-558

305-064-500-558

Edgeboard Connectors Overview

The EDAC Inc. 305-064-500-558 is a standard card edge connector header featuring 64 positions arranged in a dual row configuration. It utilizes a 3.96 mm (0.156 inch) pitch and is designed for panel mount installation at a vertical angle. The contacts are constructed from copper alloy with gold plating, rated for 5 A current, and terminate via solder lugs. The insulator is green thermoplastic, accommodating PCB thicknesses of 1.57 mm.

Edgeboard Connectors Feature Summary

Dual row header design for high-density signal routing
Gold-plated copper alloy contacts ensure reliable conductivity
Vertical panel mount style provides secure mechanical stability
Solder lug termination facilitates robust board attachment

Edgeboard Connectors Applications

Industrial control system backplanes
Telecommunications equipment interconnects
High-reliability computing hardware modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact material and plating specifications. Ensure compatibility with target PCB stack-up dimensions before ordering. Confirm RoHS compliance status through the manufacturer's latest certification documents. Cross-reference the part number with authorized distributors to validate supply chain authenticity.

Edgeboard Connectors Selection Notes

Select this component when a 64-position vertical interface is required for thick PCB applications. The 3.96 mm pitch suits systems needing wider spacing between signals. Verify that the mating card edge thickness aligns with the 1.57 mm specification. Consider the 5 A current rating for power distribution requirements within the circuit design constraints.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which specializes in standard card edge connectors for industrial environments. The series offers various position counts and mounting options. The 305-064 variant specifically addresses needs for moderate-to-high density connections in rugged applications requiring durable metal housing or panel-mount solutions.
