Edgeboard Connectors Overview

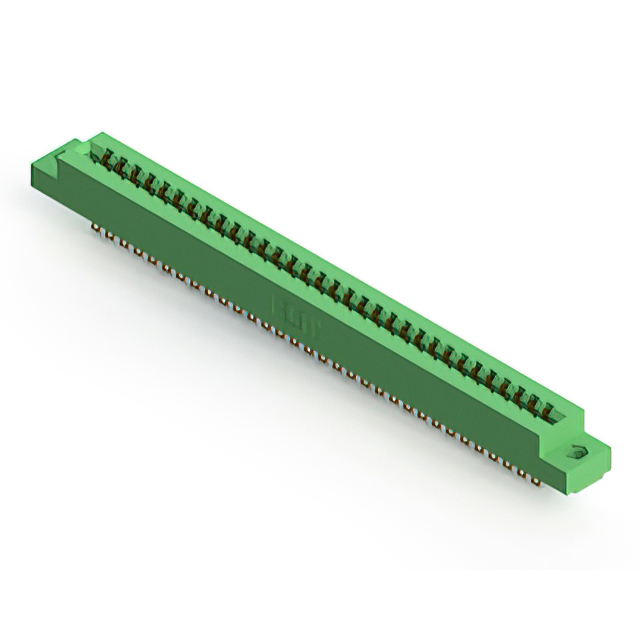

The EDAC Inc. 305-064-555-504 is a standard card edge connector from the 305 series, designed for dual-row applications with 64 positions. It features a 3.96 mm (0.156 inch) pitch and accepts non-specified dual-edge cards. The connector utilizes gold-plated copper alloy contacts with a half-bead termination type and solder lug end connections. Rated for 5 A continuous current, it supports panel mounting in a vertical orientation. The housing is green thermoplastic polyester, accommodating board thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

• Dual-row configuration with 64 positions for high-density interconnects
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Vertical panel mount design with solder lug termination
• Compatible with non-specified dual-edge circuit boards

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interfaces
• Telecommunications equipment utilizing dual-edge card modules
• Test and measurement instrumentation with high-pin-count requirements
• Automotive electronics assemblies needing durable connectors

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact contact plating thickness and flange dimensions. Ensure compatibility with existing panel cutouts and PCB stack-up requirements before procurement. Cross-reference the manufacturer part number with authorized distributors to confirm availability and lead times. Confirm RoHS compliance status if required by project specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 64-position interface is required with a 3.96 mm pitch. The vertical panel mount style suits applications where space efficiency and secure mechanical locking are priorities. Verify that the target PCB thickness falls within the specified range of 1.37 mm to 1.78 mm. Consider the 5 A current rating for power distribution needs alongside signal lines.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, a line of standard card edge connectors known for durability and versatility. The series offers various position counts and mounting styles to accommodate diverse electronic packaging needs. The 305-064-555-504 specifically addresses high-pin-count applications requiring stable electrical connections in demanding environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 305 series variants with matching pin counts and pitch, such as 305-064-500-504. Verify mechanical dimensions and contact configurations before substitution. Generic equivalents may exist but require rigorous validation of electrical ratings and material compatibility.
