Edgeboard Connectors Overview

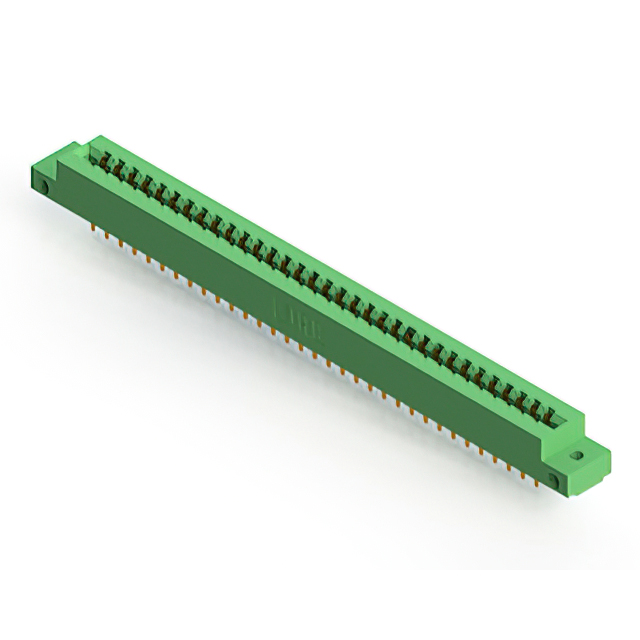

The EDAC Inc. 305-066-520-212 is a standard card edge connector from the 305 series, designed for panel mount installation with a vertical orientation. It features 66 positions arranged in two rows with a 0.156-inch (3.96 mm) pitch. The connector utilizes female contacts made of copper alloy with gold plating and employs a solder pin termination type. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C. The housing is constructed from thermoplastic polyester, offering an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row female configuration with gold-plated copper alloy contacts
• Thermoplastic polyester housing providing high insulation resistance
• Vertical panel mount design with flush side-opening flange

Edgeboard Connectors Applications

• Programming Logic Controllers (PLCs)
• Digital Multimeters
• Radar systems

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to ensure correct contact length and flange specifications. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required for panel-mounted applications. Ensure the mating PCB thickness aligns with the connector's specified tolerance range to guarantee reliable electrical contact and mechanical stability during operation.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts and mounting options, utilizing consistent spacing and material properties across models to facilitate standardized interconnect solutions in industrial and electronic equipment designs.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants such as 305-048-520-212 or 305-040-520-268 if different position counts are needed while maintaining identical pitch and mounting characteristics.
