307-043-527-158

$19.96

Description：CONN EDGE SGL FMALE 43POS 0.156
Series：307
Mfr：EDAC Inc.
Package：Box

SKU:6a070b56cdb1 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

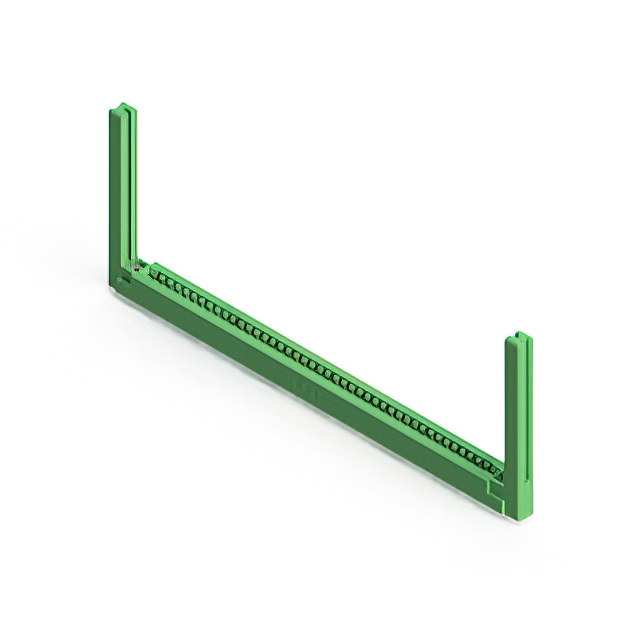

307-043-527-158 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 43POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 307-043-527-158

Description：CONN EDGE SGL FMALE 43POS 0.156
Series：307
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：43
Number of Positions：43
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.156" (3.96mm)
Read Out：Single
Features：Card Guides
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 307-043-527-158

307-043-527-158

Edgeboard Connectors Overview

The EDAC Inc. 307-043-527-158 is a single-row female card edge connector designed for through-hole PCB mounting. It features 43 positions with a 0.156-inch (3.96mm) contact pitch and accepts PCBs with a thickness of approximately 1.57mm. The contacts are constructed from copper alloy with a gold plating finish to ensure reliable signal transmission. The housing is made of green thermoplastic polyester, providing durability within an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Single-edge female configuration for standard card edge applications
Gold-plated copper alloy contacts for corrosion resistance
Through-hole termination style for secure PCB attachment
Thermoplastic polyester insulation for thermal stability

Edgeboard Connectors Applications

Industrial control system backplanes
Telecommunications equipment interconnects
Consumer electronics board-to-board connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm exact physical dimensions and termination specifications. Ensure compatibility with the target PCB thickness and row spacing requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with a 3.96mm pitch is required. Confirm that the application environment stays within the specified -40°C to +105°C operational limits and that the PCB design accommodates the through-hole mounting footprint.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 Series, which provides standard card edge connectors with a 3.96mm contact spacing. The series offers various position counts and termination options to support diverse electronic assembly needs across multiple industries.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 307-series variants such as 307-043-521-101 or 307-043-527-101 if different packaging or minor dimensional variations are acceptable. Verify pin count and pitch compatibility before substitution.
