310-87-103-01-666101

Headers, Receptacles, Female Sockets Overview

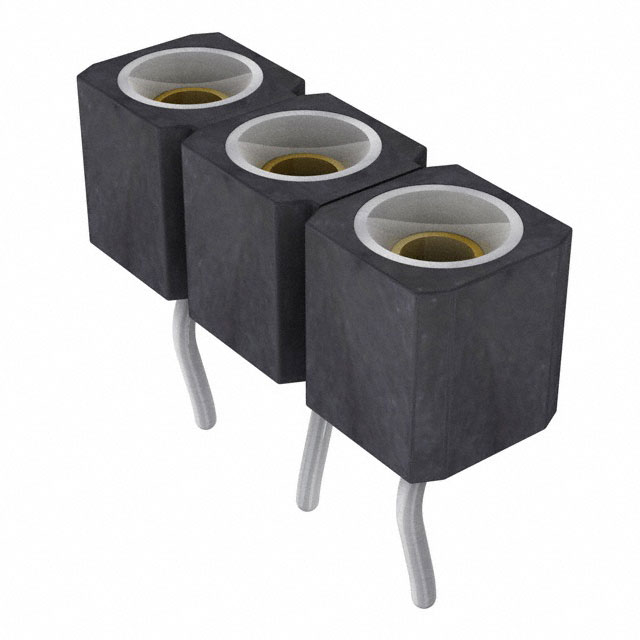

The Preci-Dip 310-87-103-01-666101 is a single-row socket connector strip designed for through-hole PCB mounting. It features 3 positions with a 2.54mm (0.100 inch) mating pitch. The contacts are female sockets with gold plating on the mating interface and tin plating on the tail, fabricated from copper beryllium alloy. The housing is constructed from black PCT polyester reinforced with glass fiber, rated UL94 V-0 for flammability. This component supports board-to-board interconnection styles.

Headers, Receptacles, Female Sockets Feature Summary

• Single-row socket configuration with push-pull fastening type
• Gold-plated female contacts for reliable signal transmission
• Through-hole termination compatible with soldering processes
• High-temperature resistant PCT insulation material

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnection systems
• Industrial control module interfaces
• Consumer electronics assembly points

Headers, Receptacles, Female Sockets Procurement Notes

Verify the exact pin count matches the '103' designation in the part number to ensure three-position compatibility. Confirm that the gold-plated contact finish aligns with corrosion resistance requirements for the specific application environment. Ensure the through-hole footprint on the target PCB accommodates the solder tail dimensions specified in the official datasheet.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a low-count, single-row socket interface is required for vertical or right-angle board stacking. The 2.54mm pitch ensures compatibility with standard header pins. Consider the copper beryllium contact material for durability during repeated mating cycles compared to standard brass alternatives.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Preci-Dip Series 310 family of PCB connectors. The series offers various row configurations and contact counts, utilizing standardized 2.54mm spacing. The 310-87 suffix indicates a specific straight solder tail variant within the broader product line, designed for robust mechanical attachment to printed circuit boards.

Headers, Receptacles, Female Sockets FAQ

What is the contact material used in this connector?

The contacts are manufactured from copper beryllium alloy to provide high strength and fatigue resistance.

Is this connector suitable for high-temperature environments?

Yes, the PCT insulation material is rated for operating temperatures up to 125°C.
