Headers, Receptacles, Female Sockets Overview

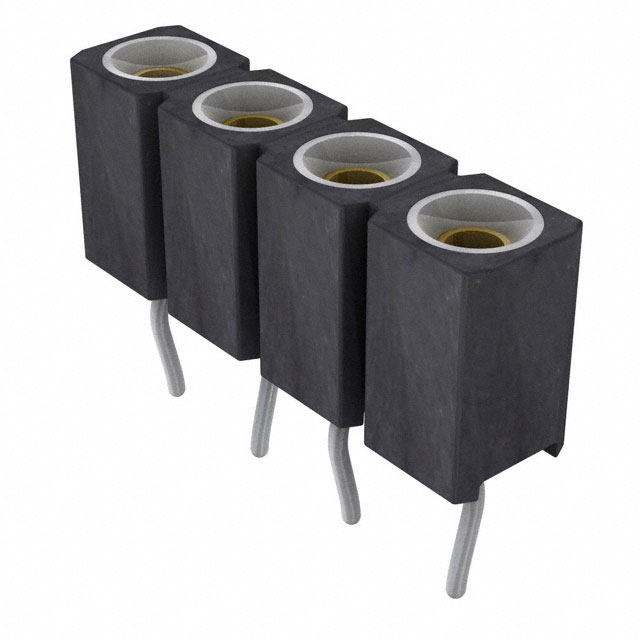

The Preci-Dip 310-87-104-01-754101 is a single-row socket connector featuring four contacts with a 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting, it utilizes clinched solder tails for secure PCB attachment. The housing is constructed from black polybutylene terephthalate (PBT) reinforced with glass fiber, meeting UL94 V-0 flammability standards. Contacts are made of beryllium copper, plated with flash gold and tin to ensure reliable signal transmission. It supports a rated current of 3A and operates within a temperature range of -55°C to +125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Single-row straight socket configuration with clinched solder tails for robust through-hole installation.
• High-temperature resistant PBT housing with glass fiber reinforcement ensuring UL94 V-0 compliance.
• Beryllium copper contacts with dual plating of flash gold and tin for optimized conductivity and durability.

Headers, Receptacles, Female Sockets Applications

• General-purpose electronic circuit interconnections
• Industrial control system board-to-board connections
• Consumer electronics assembly requiring standard pin spacing

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific contact count matches the '04' designation in the part number to ensure correct pin configuration. Confirm that the through-hole mounting style aligns with the target PCB layout requirements. Check that the operating temperature range meets the environmental conditions of the intended application. Ensure compatibility with mating pins regarding the specified 2.54 mm pitch.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a single-row, four-position socket is required for direct PCB insertion. The choice is driven by the need for a low-profile design with a 4.2 mm height. Consider the material composition if high thermal stability or specific flammability ratings are mandatory. Evaluate the contact plating options against corrosion resistance needs in the operating environment.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Preci-Dip 310 series, which specializes in standard pitch rectangular connectors. The series offers various contact counts and mounting styles, catering to diverse electronic assembly needs. The 310 series is known for its reliability in general industrial and commercial applications, providing consistent performance across different environmental conditions.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other 4-position, 2.54 mm pitch through-hole sockets from compatible manufacturers. Verify mechanical dimensions, particularly the 4.2 mm height and clinched tail design, to ensure physical compatibility. Electrical characteristics such as current rating and voltage withstand must match or exceed the original specifications.
