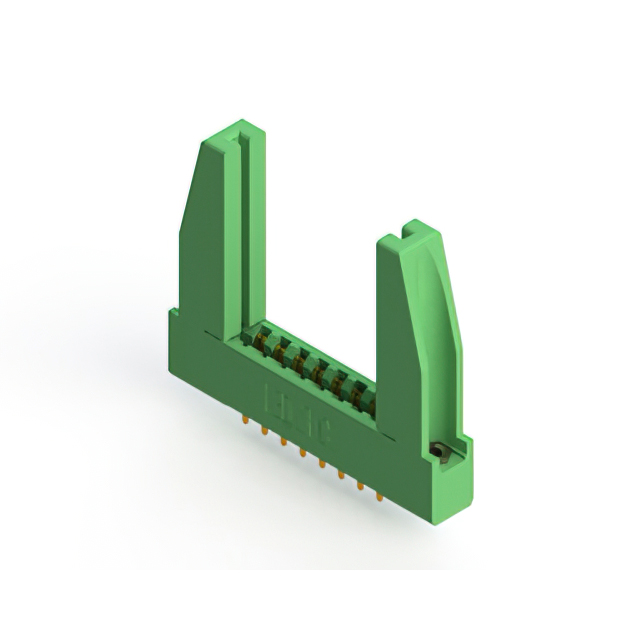

315-016-521-278

$7.61

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：315
Mfr：EDAC Inc.
Package：Box

SKU:a029d33d61e1 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

315-016-521-278 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 315-016-521-278

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：315
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：8
Number of Positions：16
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 315-016-521-278

315-016-521-278

Edgeboard Connectors Overview

The EDAC Inc. 315-016-521-278 is a dual-edge female card edge connector from the 315 series, designed for through-hole mounting. It features 16 positions with a 0.156-inch (3.96mm) contact spacing and two rows of contacts. The connector utilizes gold-plated half-bevel contacts and a green thermoplastic polyester insulator. It supports non-specified dual-edge cards with thicknesses ranging from 0.054 to 0.070 inches. The component operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

Dual-edge female configuration for secure board insertion
Gold-plated half-bevel contacts ensure reliable signal transmission
Thermoplastic polyester insulation provides thermal stability
Through-hole termination facilitates standard PCB assembly

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Consumer electronics module connections
Medical device circuit board interfaces

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required pin count and spacing specifications before procurement. Confirm compliance with RoHS3 standards and REACH regulations as indicated in official documentation. Ensure compatibility with the target printed circuit board layout and mating card thickness requirements. Check current availability status as supply chain conditions may vary.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge female interface with 0.156-inch spacing is required for through-hole applications. Consider the operating temperature range and material composition for environmental suitability. Evaluate mechanical fit including flange characteristics and mounting orientation against design constraints. Compare against alternative series if different contact counts or spacing are needed.

Edgeboard Connectors Part Context

This component belongs to the EDAC 315 series of edgeboard connectors, which are engineered for robust performance in various electronic assemblies. The series offers multiple configurations to accommodate different industry standards and application requirements. EDAC designs these connectors to provide durable electrical connections in demanding environments.
